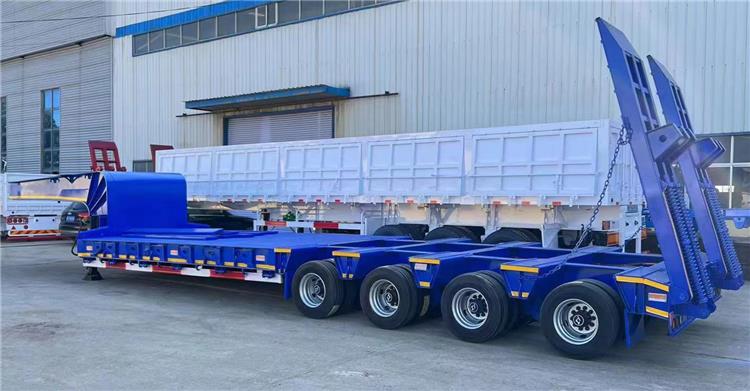

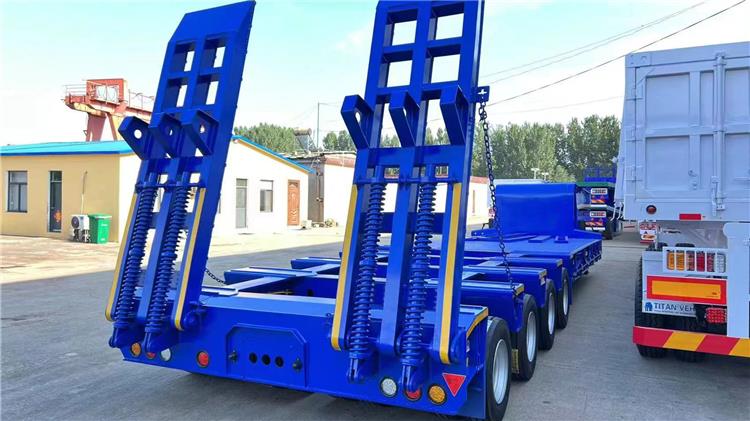

4 Line 8 Axle Low Loader Truck Trailer for Sale In Kenya

Kenyan customers are our regular customers. In 2022, he first bought 4 line 8 axle low loader truck trailer from TITAN. This year customer bought 4 line 8 axle low loader truck trailer from TITAN again.

Before production, make drawings according to the needs of users and the market to match the technical parameters of the main 4 line 8 axle low loader truck trailer, and then transfer to the manufacturing department.

Submerged arc welding beam, beam fixed. In the second step, the cut web and the upper and lower flanges are fixed to the welding points, and then the beam is welded by submerged arc welding.

Openings, collimated beams, through beams. First cut out a U-shaped hole on the beam web for the beam to pass through, and then fix the welded I-beam in parallel. It is very important to compare the results of beams. If the parallelism error of the two I-beams is large, tire wear will be very serious.

4 Line 8 Axle Low Loader Truck Trailer for Sale In Kenya

4 line 8 axle low loader truck trailer for sale technical department should first design and make drawings according to the needs of users and the market, so as to match the technical parameters of the main trailer, and then transfer it to the manufacturing department.

Cutting steel plate material stage. According to the drawings of each part made by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories, etc.

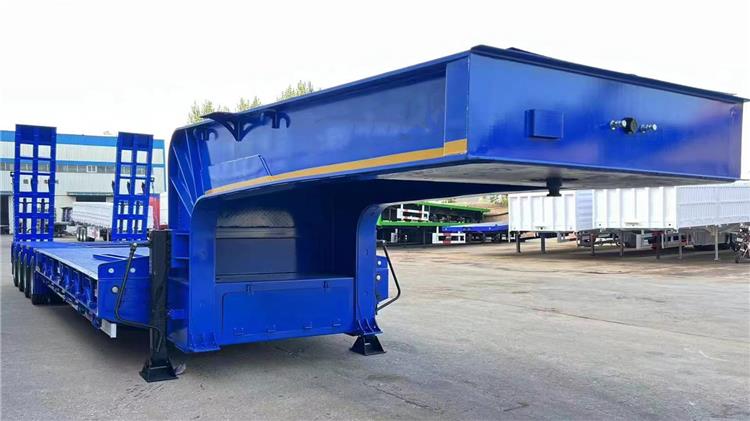

Connect the side beams and weld the kingpin. The main girder of 4 line 8 axle low loader truck trailer has basically been formed, and the frame structure can be formed only by welding the side girders. And the traction pin traction plate is welded to the position required by the contract, and the welding process requires high requirements, otherwise, the 4-axis excavator trailer will be skewed.

4 Line 8 Axle Low Loader Truck Trailer for Sale In Kenya

The towing pin is an important part that connects the low-load trailer to the tractor and bears the traction force, and is connected to the fifth wheel. Generally forged from chrome alloy structural steel. According to different cargo tonnages, there are 50# traction pin and 90# traction pin. Generally, the total weight of the 50T trailer and goods is limited, use 50# pins below 50T, use 90# traction pins above 50T, and use 90# traction pins for insurance purposes.

4 Line 8 axle low loader truck trailer is a supporting bridge. American and German axles are most popular in China. The axle is connected to the vehicle frame through leaf springs, tie rods and suspension devices, and connects the vehicle frame and wheels. The force that supports and transmits loads.

4 Line 8 axle low loader truck trailer adopts non-independent steel stamping rigid suspension, which is composed of serial leaf springs and suspension bearings, which are used to support the load and slow down the impact of vehicle dynamic load.

Other accessories on the 4 line 8 axle low loader truck trailer include tool box, spare tire carrier, gantry, stakes and more. There are also some small accessories such as rope tighteners, rope hooks and other functional accessories, which should be selected according to the type of goods.
