Detachable gooseneck trailer, also known as a Detachable gooseneck trailer or a front-loading trailer, is a specialized type of trailer commonly used in the transportation industry. It is characterized by several key features:
The most distinctive feature of a detachable gooseneck trailer is its removable front section, known as the gooseneck or the neck. The gooseneck is typically connected to the trailer using pins, hinges, or hydraulic systems, allowing it to be detached and lowered to the ground. This enables easy loading and unloading of heavy equipment or machinery from the front of the trailer.
Detachable gooseneck trailer are designed to facilitate front loading. With the gooseneck detached and lowered, equipment or machinery can be driven or rolled onto the trailer from the front, eliminating the need for ramps or specialized loading equipment. This feature is particularly advantageous for transporting heavy and oversized loads, such as construction equipment, industrial machinery, or large vehicles.
When the gooseneck is detached and lowered, a detachable gooseneck trailer offers increased ground clearance at the front. This enables easier maneuverability over uneven terrain, obstacles, or during off-road operations. It also allows for better access to job sites or areas with limited space.
Detachable gooseneck trailer are highly versatile and can accommodate a wide range of load types. They are commonly used for transporting heavy construction equipment, agricultural machinery, industrial components, and other oversized or specialized cargo. The front-loading design and high weight capacity of these trailers make them suitable for transporting loads that may be difficult or impossible to load onto other trailer types.
Many detachable gooseneck trailer offer adjustable length capabilities. The trailer can extend or retract to accommodate different load lengths, providing flexibility for transporting various sizes of equipment or cargo. This adjustable feature helps optimize weight distribution and ensures compliance with road regulations regarding load overhang.
Detachable gooseneck trailer are designed to provide stability and evenly distribute the weight of the load. They are equipped with support legs or jacks at the front to provide stability when the gooseneck is detached. The weight of the load is transferred to the trailer's axles, ensuring safe and balanced transportation.
Detachable gooseneck trailer offer significant advantages in terms of load accessibility, versatility, and maneuverability, particularly for heavy and oversized cargo. It's important to note that specific features and characteristics can vary among different manufacturers and models of detachable gooseneck trailers.
Bhachu Detachable Gooseneck Trailer for Sale - Front Loading Lowbed Trailer in Kenya
Chapter 1: What is a removable gooseneck trailer?
Chapter 2: What types of detachable gooseneck trailer？
2.1 Common structure of detachable gooseneck trailer
2.2 The first type of the detachable gooseneck trailer
2.3 The second type of the removable gooseneck trailer
2.4 Operation and characteristics of hydraulic lowboy trailer
Chapter3: Points to consider when purchasing a detachable trailer.
3.1 Frame of gooseneck hydraulic low bed trailer
3.2 What is the difference between the steel used for the detachable trailer？
3.3 What is the load of the detachable trailer for sale.
3.4 How high off the ground is a detachable trailer?
Chapter 4: Detachable gooseneck trailers carrying experiment and marine transportation.
Bhachu removable gooseneck trailer for sale has many different names in different countries around the world, such as RGN trailer, detachable gooseneck trailer, folding gooseneck lowboy trailers, hydraulic low bed trailer, removable gooseneck trailer, front loading rgn lowboy trailer, and Bhachu military lowboy trailer for sale.
Loading method for removable gooseneck trailer: cargo is loaded from the front. Bhachu Detachable gooseneck cargo table is only 85 cm, the center of gravity is very low, so the stability and security are very good. As you can see, the removable gooseneck trailer can transport ultra-high and medium sized equipment and machine.

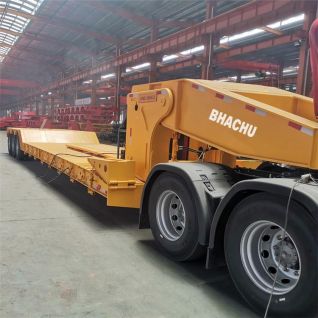

Bhachu 3 Axle 60/80 Ton Removable Gooseneck Trailer

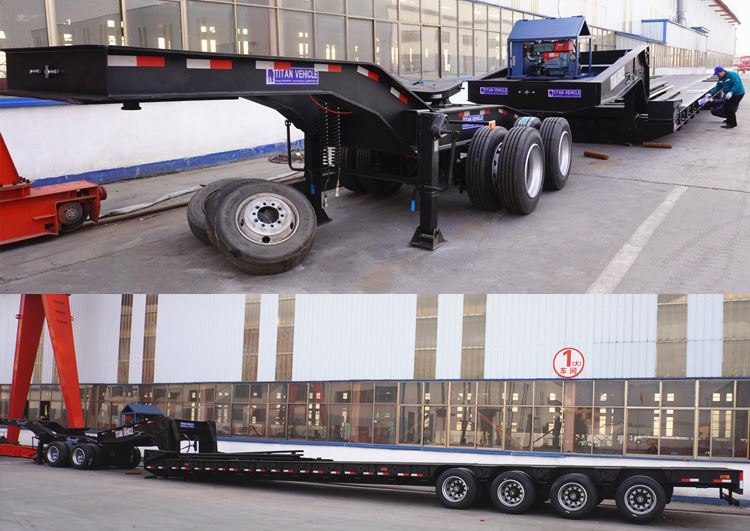

Bhachu 4 Axle Removable Gooseneck Trailer with 2 Axle Dolly

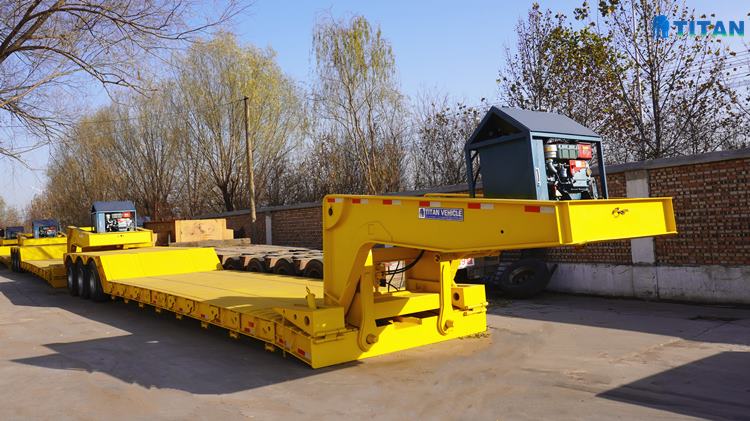

The Bhachu hydraulic detachable gooseneck trailer uses a concave beam type. Bhachu Detachable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the RGN trailer is restored to the original transportation state in time for transportation.
Common Bhachu detachable gooseneck trailer, should use the ramp behind the used lowboy trailer for cargo loading. Yet, some large machinery and equipment, such as pile drivers, large rotary drills, large excavators, and large bulldozers, have very high centers of gravity due to their very high height. There is a great risk of later loading.

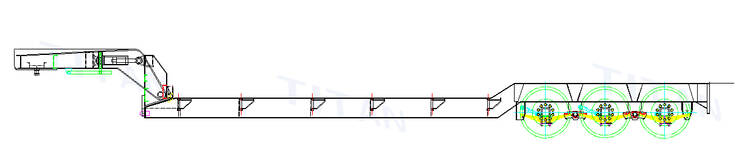

The Bhachu stretch detachable gooseneck trailer has many different structures. There are two structural styles. Then we use pictures and text to explain it. Bhachu removable gooseneck trailer dimensions can be customized according to your requirements.
It is mainly designed to transport 30 tons, 60 tons, 80 tons, 100 tons, 120 tons of heavy equipment or machinery.
The main styles are 2 axles, 3 axles, and 4 axles.
It is mainly designed to transport 100 tons, 120 tons, 150 tons of heavy equipment or machinery.

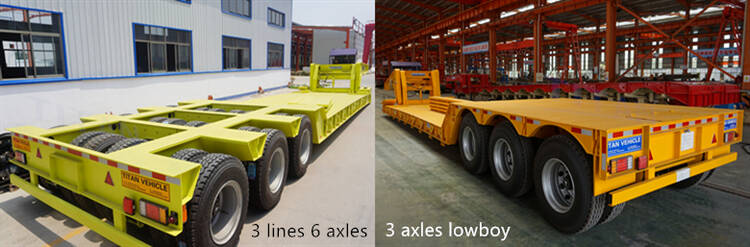

The main use is the line axle structure. 2 lines 4 axles, 3 lines 6 axles, and 4 lines 8 axles.
Bhachu Detachable gooseneck trailer for pickups truck
Mechanically detachable gooseneck operation: In the process of removing the gooseneck, the front gooseneck of the trailer must be separated from the saddle of the truck. After the disassembly is completed, the equipment can be loaded.
Bhachu Detachable gooseneck trailer features: Because this trailer has a low center of gravity and a long cargo table, it can transport a lot of goods. The maintenance cost is also very low, the structure is easy to assemble, and the weight is light. Thus, the Bhachu rgn trailer for sale near me is the preferred type that many transportation companies sell.
There are a variety of different transport semi trailers in the Chinese transport market, as many of them are locally transported and so common low bed trailers are more. Every city in China is under construction and is basically equipped with construction machinery and equipment, so long-distance transportation of large machines such as heavy excavators is not required.
But, the Bhachu hydraulic removable gooseneck trailers produced by Bhachu detachable trailer manufacturers are mainly exported to Central and West African countries such as Nigeria and Tanzania, and more than 200 units have been produced. Technology is mature.
The effective load surface length of the frame is generally 5500mm to 9000mm, the width is 3000mm to 36000mm, and the widest can be 4 meters wide.
Currently, the main steel type used for Bhachu gooseneck lowboy trailers is HG60. HG60 is high-strength structural steel with high toughness, good fatigue resistance, welding performance and corrosion resistance.
HG60 high strength steel: C≤0.18 Si0.15 ~ 0.40 Mn1.00 ~ 1.70 P≤0.030 S≤0.025 Mo-Cr-Nb0.02 ~ 0.06 V0.03 ~ 0.08 Ni- HG60
Tensile test: Ret≥450MPa Rm570 ~ 720MPa A50≥19
Common lowbed trailers use Q345 manganese steel. Q345 steel cannot be used to transport heavy equipment.
Bhachu can be customized Bhachu heavy duty detachable trailer according to actual load requirements. Common design load tonnages are 60 tons, 80 tons, 100 tons, 120 tons, 150 tons, fixed rgn equipment trailer max weight reaches 200 tons.
The height of the Bhachu military Bhachu pj detacahble gooseneck trailer plate can be customized. The common design of the height of the working surface is 850mm, and 800mm and 900mm. The height of the working surface can be controlled by the hydraulic system during actual transportation.
After the production of all Bhachu hydraulic detachable goosenecks, pressure tests will be performed.

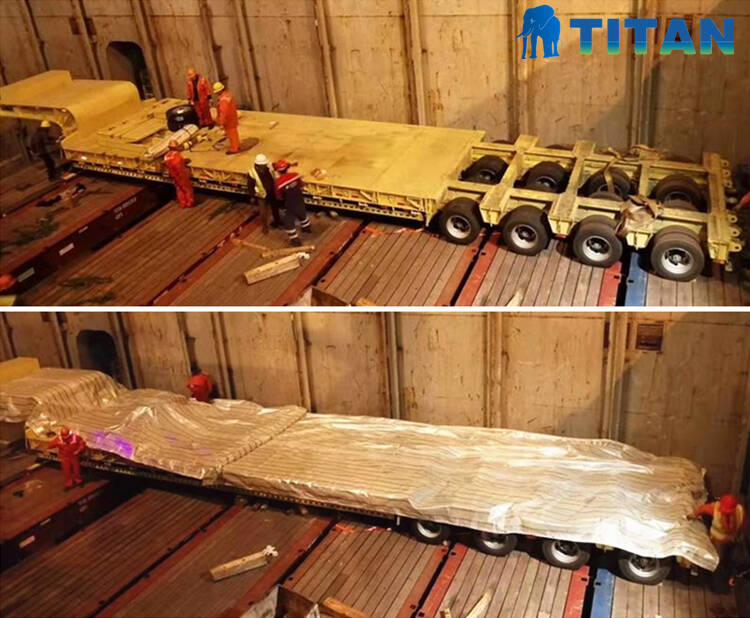

To prevent the 53 foot tilt deck extendable gooseneck trailer paint from being corroded by seawater, we spray a layer of wax on the surface of the lowboy trailer before shipping, and then seal it with a waterproof rain cloth.
Bhachu 35 ton fixed neck paver double drop detachable gooseneck trailer for sale
