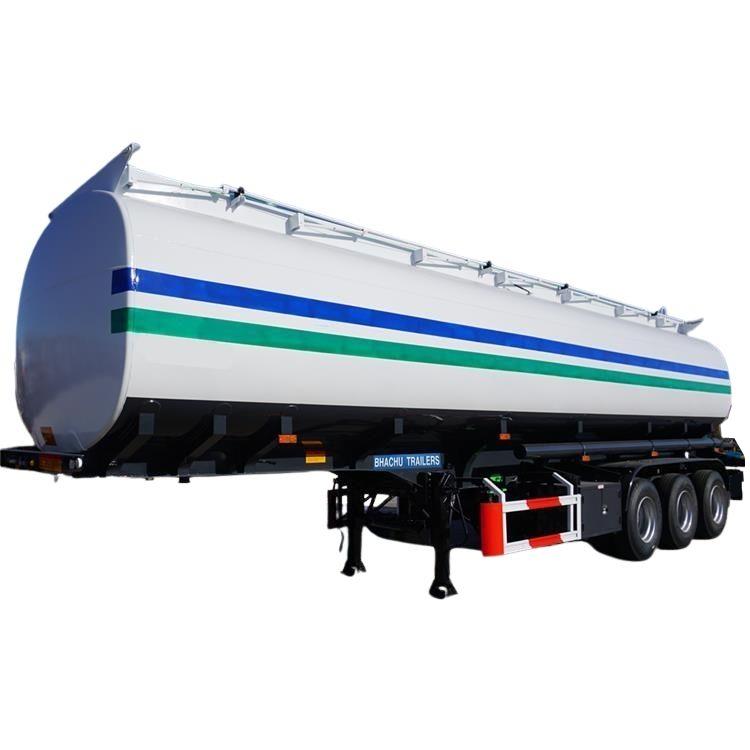

45000L Fuel Tanker Trailer

45000L Fuel Tanker Trailer Description：

Bhachu trailers for sale 45000l fuel tanker trailer are mainly used for transporting liquid and oil. The tank body is generally made of carbon steel sheet, and it can also be made of aluminum alloy, stainless steel, polyethylene and other materials.

The tank body has sufficient strength. There are anti-shock plates inside the diesel tank trailer. There are manholes and liquid discharge valves in the tank accessories. One of our Bhachu 45000 liters fuel tanker trailers prices can transport two kind of oil, it can be divided into tanks. The common tank material is carbon steel Q345, thickness is 4mm-6mm national standard steel plate.

Bhachu trailers for sale 45000l fuel tanker trailer are mainly used for transporting liquid and oil. The tank body is generally made of carbon steel sheet, and it can also be made of aluminum alloy, stainless steel, polyethylene and other materials.

45000 Liters Fuel Tanker Trailers Prices | Bhachu Trailers for Sale In Kenya Mombasa

45000 Liters Fuel Tanker Trailers Prices | Bhachu Trailers for Sale In Kenya Mombasa

45000 Liters Fuel Tanker Trailers Prices | Bhachu Trailers for Sale In Kenya Mombasa

45000 Liters Fuel Tanker Trailers Prices | Bhachu Trailers for Sale In Kenya Mombasa

45000 Liters Fuel Tanker Trailers Prices | Bhachu Trailers for Sale In Kenya Mombasa

45000 Liters Fuel Tanker Trailers Prices | Bhachu Trailers for Sale In Kenya Mombasa

45000 Liters Fuel Tanker Trailers Prices | Bhachu Trailers for Sale In Kenya Mombasa

Bhachu 45000 Liters Fuel Tanker Trailers Price for Sale In Kenya Mombasa

Specification:

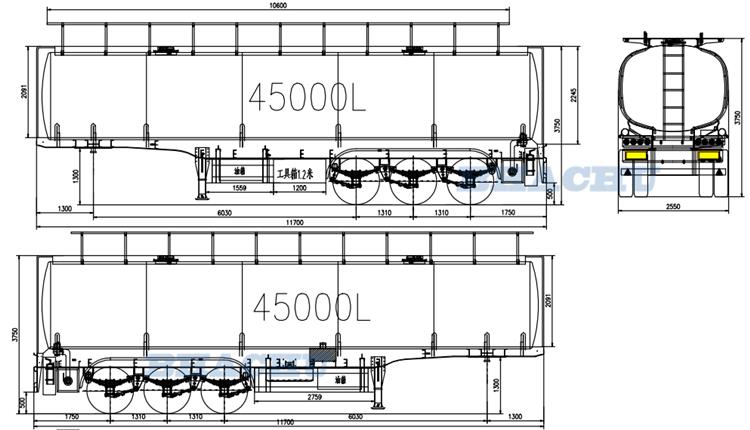

Dimension: 10600mm * 2500mm *3750mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(liters): 45000 liters

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

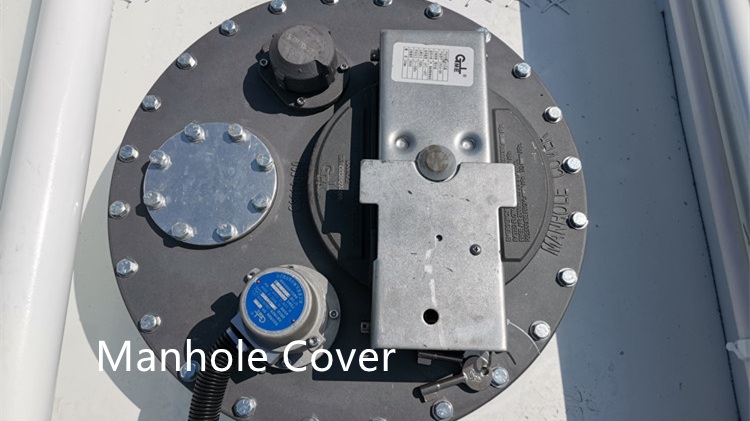

Manhole Cover: Carton steel

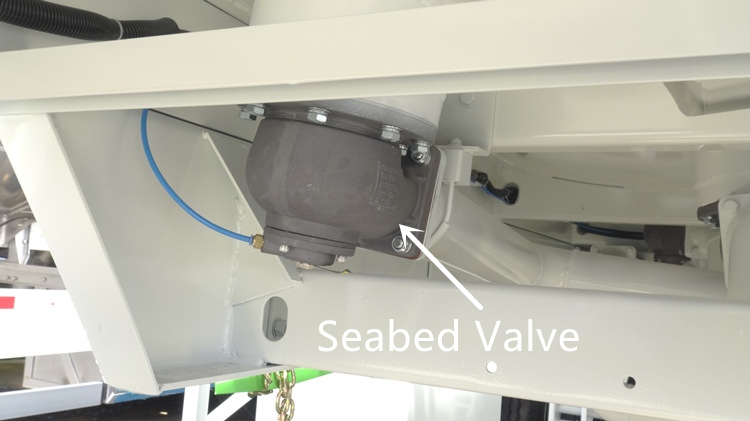

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

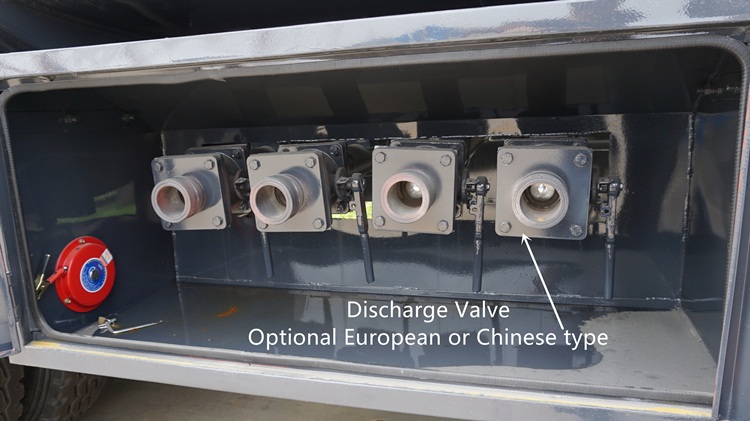

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

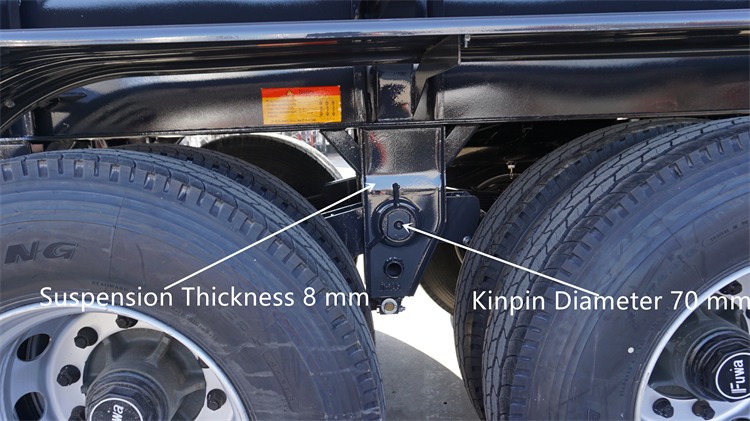

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

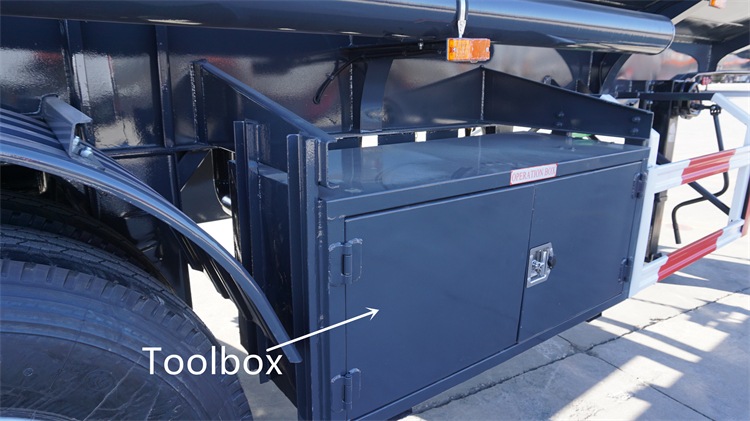

Accessories: One standard tool box

Advantage:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The Bhachu trailers for sale tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water-filled test equipment Water tank: To ensure the high seal of tank body and avoid the leaks oil.

6. The waved board reduces the impact of the liquid on the Bhachu tanker.

7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

8. We adopt famous brand parts for our tank trailers, it saves costs & ensures long-time service.
