Chapter 1: Knowledge of a side loader trailer?
Chapter 2: What is the container side loader?
2.1 What are the different types of container side loaders?
2.2 What are the technical characteristics of the container side loader trailer?
2.3 Parameters of container side loader crane
Chapter 3: How to operate and use self loading trailer?
Chapter 4: What are the important parts of a self loading container trailer?
Chapter 5: Sidelifter package and shipping.
Chapter 6: How does the side loader load the container onto the trailer?
Bhachu Side loader trailer includes 20ft side loader truck, 20ft and 40ft Side loader trailer.

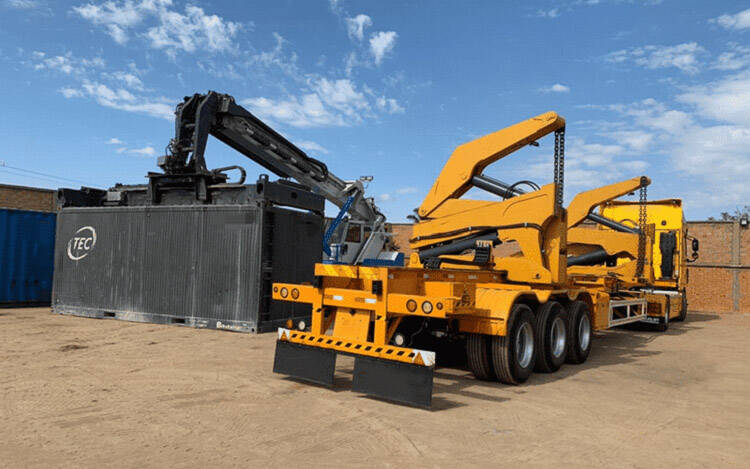

The Bhachu side loader trailer is a container-specific loading and unloading vehicle, which is used in container terminals and transfer yards. The role of Bhachu Side loader trailer is to realize container handling, such as loading and unloading of container flatbed trailer.
The Bhachu Side loader trailer technology can effectively solve the problem of no loading and unloading machinery. The military of many countries has been equipped with container loading trailer. As a convenient and efficient container loading and unloading vehicle, the container lift trailer can load containers by itself, and it can also load and unload containers for other container carriers (such as flatbed trailer and skeletal trailer). As you can see, box loader for sale is very suitable for areas where there is no container loading and unloading equipment.

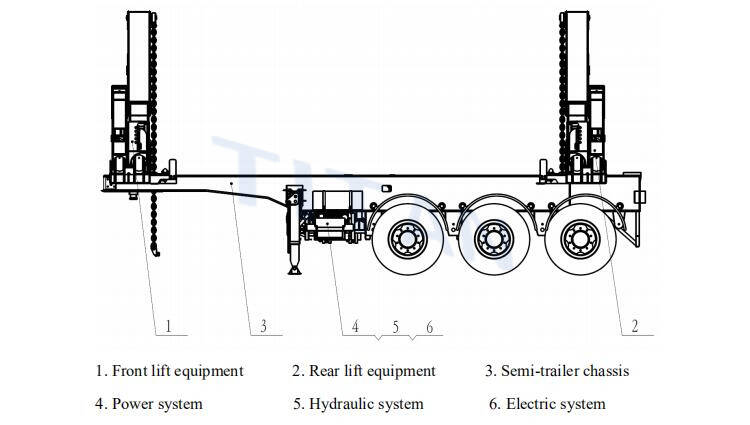

The Bhachu Side loader trailer consists of two side hoisting cranes and a trailer or truck. The Side loader trailer has four basic operations: from/lift to the ground, from/to another chassis or railway wagon, stacking containers and road transportation. The complete processing time is 2-4 minutes.
The Bhachu Side loader trailer can safely lift the container and transport it by road in accordance with all regulations. No other equipment can be transported and upgraded with the same cost-effectiveness and performance as the Bhachu container side loader.
Bhachu Side Lifter for Sale
Bhachu Side loader trailer can load and unload containers or other goods directly from/to the ground. Once the cargo falls on the ground, Side loader trailer can proceed to the next job and can pack/unpack the container safely and effectively.
Side loader trailer can be equipped with a stacking function, allowing you to place one container on top of another container placed on the ground. Through double stacking, customers can save valuable space. Stacked containers can also improve cargo safety.
Bhachu Side loader trailer can remove containers from trailers, trucks or rail wagons. This means it can be used as a mobile lifting device or as part of a fleet to load/unload other trailers or trucks. This also means that container side loader can be used as an intermodal tool.
The Bhachu container side loader trailer integrates the functions of container lifting, container unloading, and container transportation.

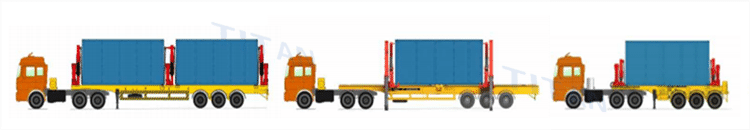

According to the type of transportation container, it is divided into 20ft and 40ft container side loader trailer.
According to different transport chassis, it can be divided intocontainer side loader trailer and sideloader trailer.
According to the different tonnage of lifting, it can be divided into 16 tons, 25 tons, 37 tons, 45 tons of hammar container side loader trailer, of which 37 tons and 45 tons are the best sales.
1. The Bhachu container side loader trailer can be moved back and forth, and can be used for both standard 20 and 40 foot containers.
2. It adopts wireless remote control system, equipped with imported remote control, which is easy to operate and reliable in micro movement.
3. It reserve manual operation mode.
4. It is equipped with imported solenoid valve, and the control is accurate.
5. The container side loader trailer crane structural parts are welded from high-strength imported steel plates, and the entire container side loader trailer has undergone stress tests.
Hot selling 20ft container side loader truck parameters:
Max.lifting capacity: 37 Ton
Dimension(L*W*H): 12000*2500*4000mm
Axle: 2 axle
Tire: 8 pcs, 12R22.5
Tow Chain: Igus (imported)
Truck head: HOWO 371 A7, Optional
Hot selling 40ft container side loader trailer parameters:
Max.lifting capacity: 37 Ton
Dimension(L*W*H): 14100*2500*4100mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Axle: 3 axle
Tire: 12 pcs, 12R22.5
Suspension: Heavy duty type mechanical spring suspension
Tow Chain: Igus (imported)
Power source: PTO and Japenese Kubota diesel engine
Bhachu moving loaded shipping containers transport near me
We recorded a video of the operation of the Bhachu container lifter trailer, please watch the video to understand the operation and use.
1.Knob switch is start and alarm switch: The system gets through power just or enters into a sleeping state, only shift the switch can start remote control ( alarm sending out a signal at this time). When need to give the alarm, shift the switch to the position marked, when release it, the switch will back to the original position, an alarm is stopped.
2.Self-lock switch is used for controlling speed: high speed is denoted by the “rabbit” pattern; high speed is denoted by the “tortoise” pattern. Used for selecting operation mode: 0-no operation, L-LEG-leg operation mode, B-BOOM-boom operation mode.
3.Emergency stop, press emergency stop and power are switched off, all movement stopped.
4.Self-lock switch, used for selecting operation mode: when non-synchronization: left side handle to control the motion of front lifting, and the right side handles to control the motion of rear lifting; when synchronization: left side handle can control the motion of front and rear lifting simultaneously, the right side handle has no effect.
5.The handles on the top of both sides are universal proportion handle, used for lifting/dropping upper boom, swinging down boom, lifting/dropping support leg, retracting/extending support leg.
6.Remote control or other place is equipped with a buzzer, which is used for warning person of the low power supply , of course, at the same time, buzzer can sounds to warn persons of the condition.
1. Wireless remote control, equipped with imported remote control, easy to operate.
2. Boom slide system. The 20ft or 40ft container can be loaded and unloaded through the sliding of the front and rear cranes, which has a wide range of applications and good versatility, greatly expanding the use of the equipment.
3. WABCO braking system reduces best self loading container trailer Sacramento braking distance.
Bhachu sidelifter delivery truck trailer package
Bhachu trailers, Bhachu trailers prices, Bhachu Industries Ltd

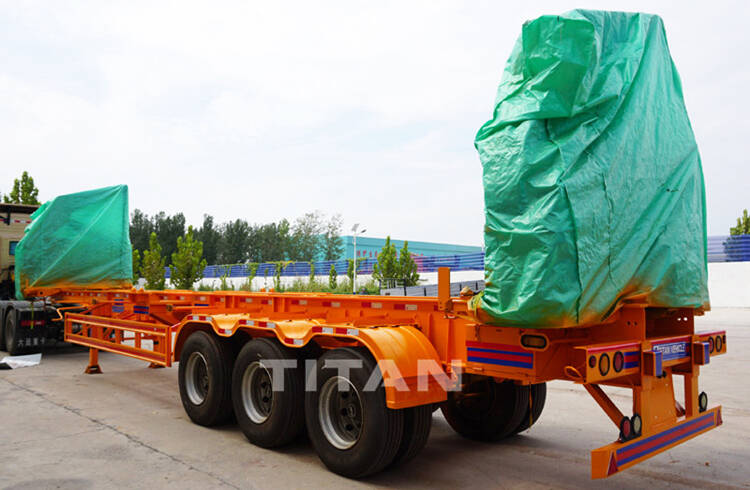

The Bhachu sidelifter container transport trailer is generally delivered by bulk carriers or ro-ro ships. Before delivery, we spray the entire sidelifter with wax, and important parts such as the boom are covered with a layer of rain cloth.
If ports without bulk carriers, we will ship by container.
1.As containers come in different lengths and weights, the cranes can slide along the sidelifter chassis to move to the best location for lifting, and so that they place the container in the optimum position for the best weight distribution.
2.The Bhachu 40ft sidelifter extends and places outriggers on either side of the container to prevent the trailer from tipping. Once the outriggers are fully extended, the driver is ready to connect the chains.
3.This leg is fully extended. You can see the danger area for the lift zone marked on the leg. The chains are connected to the bottom corners of the container using the fixings. Once the lifting starts, it’s important that the driver stays well clear of the lifting zone.
4.The driver positions the Bhachu 40ft sidelifter next to the container. The power to the side loader is provided by the PTO or power take off.
Some models can also load a container onto another adjacent truck or rail wagon or can stack one container on top of another that is at ground level. Using a Bhachu 40ft sidelifter, a driver can load or unload a container in less than five minutes, This also means that only one person is involved in the lift, leading to improved safety factors. As the weight of the load is taken through the truck’s wheels, side loaders are versatile in situations that other machinery might struggle in.
