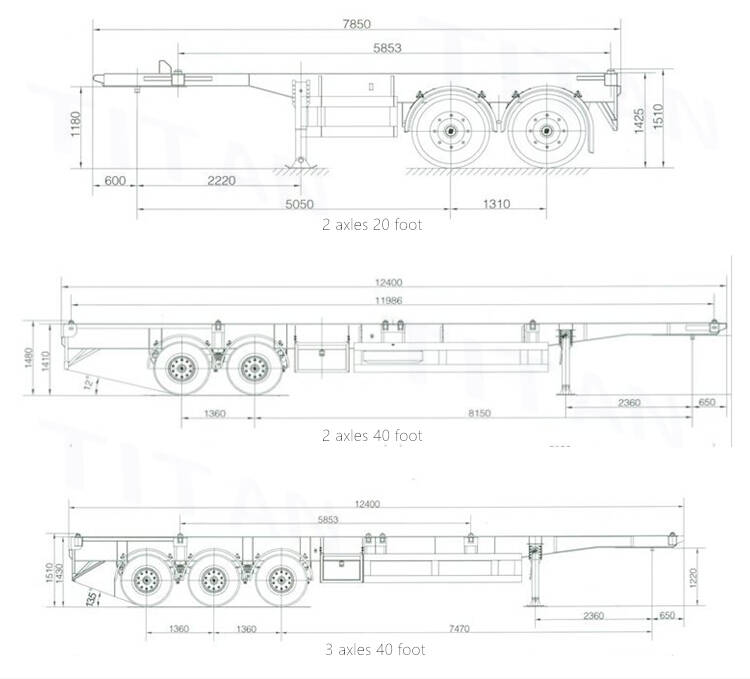

Chapter 6. Basic Specifications of Container Chassis Trailer
Chapter 7. What Size is a Skeleton Trailer for Sale?
Bhachu Multi-function Container Chassis Trailer for sale
Bhachu Multi-function Container chassis trailer is specially designed to carry various cargo containers.
container chassis trailer for saleincludes 20, 40, 45 foot and other types. It is dedicated to transporting containers. It contains two kinds of container chassis trailer for long distance transportation and terminal trailer for port transportation.

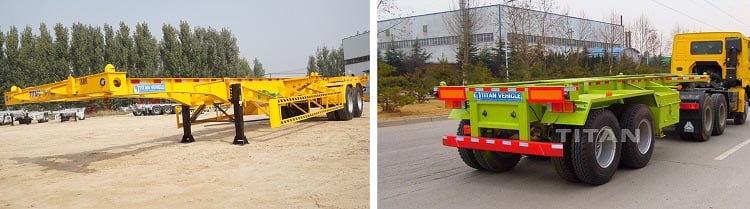

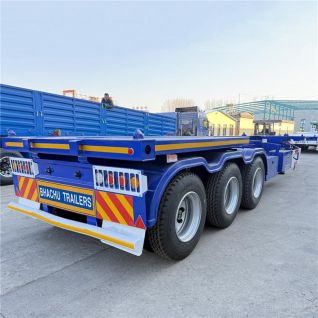

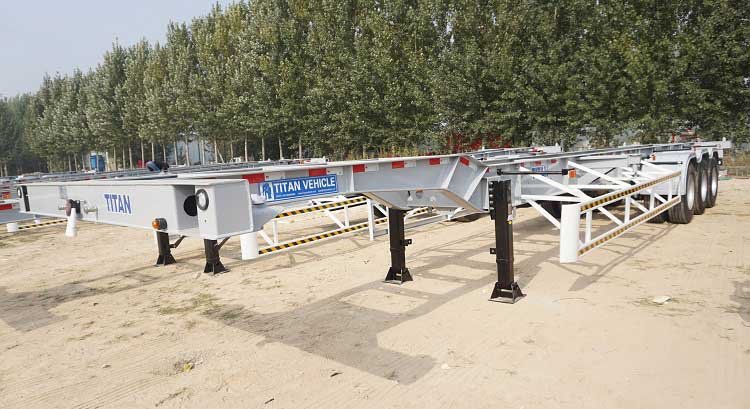

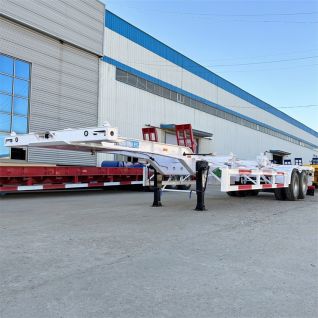

Bhachu 40ft container chassis trailer for sale

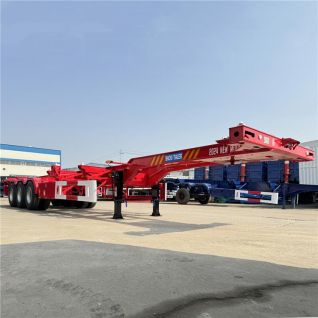

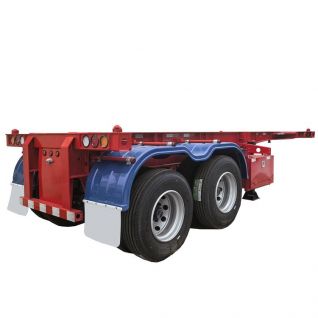

There are five common types of Bhachu container chassis trailer: Bhachu 20 ft container chassis for sale, Bhachu 40ft tri axle chassis, 45ft container chassis trailer, Bhachu terminal trailer and used self loading fixed container chassis for sale.
Bhachu can customize container chassis trailer dimensions and height from ground, just need tell us your requirements: container chassis trailer specs, tires, parts.

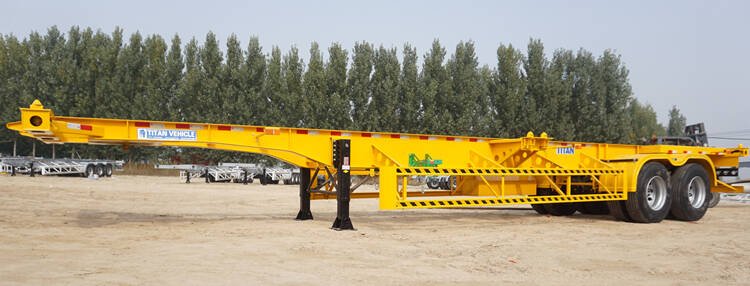

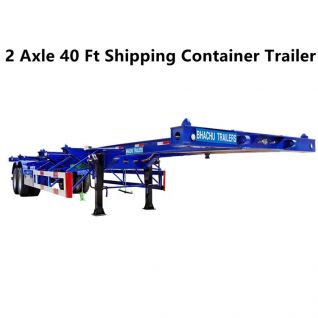

Bhachu 2 axle tipping container chassis for sale
How to judge the quality of a container chassis trailer. The easiest way is to look at the weight of the trailer. The heavier a trailer, the better the quality. The Bhachu tri axle container chassis for sale purchased by African customers weighs 7 tons. If the weight is only 6.3 tons, the cost of this container chassis trailer can save more than $ 800.
Here are a few more important points below:
The shelf part is the main load bearing part, which is composed of a beam, a side beam, a beam, a floor, and a suspension.
The thickness of the beam part depends on whether the thickness is an international standard. The international standard for the frame of the Multi-function Container Chassis Trailer is 14/8/16 mm. The material of the steel plate in the middle of the beam is Q345B or manganese steel with a thickness of 8mm. Many unreliable suppliers will use 6mm Thickness beam slabs to save costs, but the carrying capacity was reduced by 26%. The international standard thickness of the middle part of the beam must be 8mm.
Locks, Bhachu Multi-function container chassis for sale is equipped with 12 sets of locks, which can be used to transport a 40 foot container or two 20 foot containers, or a 20 foot container alone.

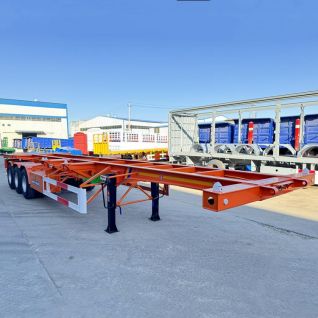

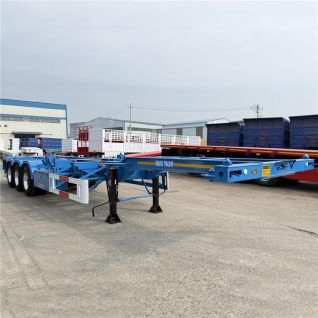

Bhachu 20/40ft Multi-function Container Chassis Trailer
Axle
The axles of the Bhachu container chassis for sale are divided into three types: 13 ton axles, 13 ton axles + 16 ton brake system axles, 16 ton axles.
The axles of the Bhachu container chassis for sale are 13 ton axles + 16 ton brake system axles. The braking performance is better, and the braking distance is shortened by more than 5 meters.
Tire
The Bhachu container chassis uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.
The Bhachu container chassis for sale uses factory-made, wear-resistant tires. On Chinese highways, Bhachu tires can reach more than 300,000 kilometers.
The suspension of the Bhachu container chassis is made of special high-strength rigid steel, with a thickness of 6mm. The middle pin is 70mm in diameter. Stronger than suspensions in many factories.
Many customers use the method of container transportation, which has low transportation cost and short transportation time.
Some customers choose bulk carriers or ro-ro ships. Before the Bhachu Multi-function container chassis for sale is shipped, the vehicle is sprayed with wax and covered with a tarpaulin.

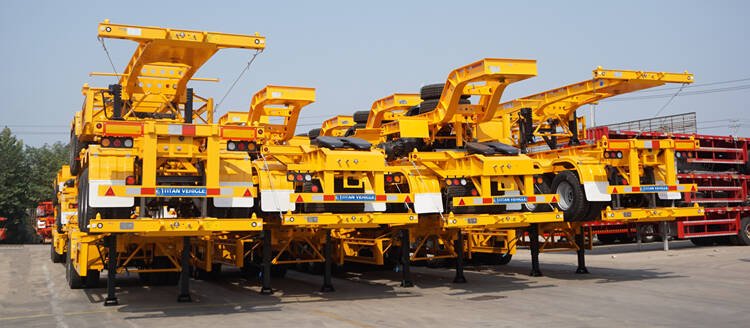

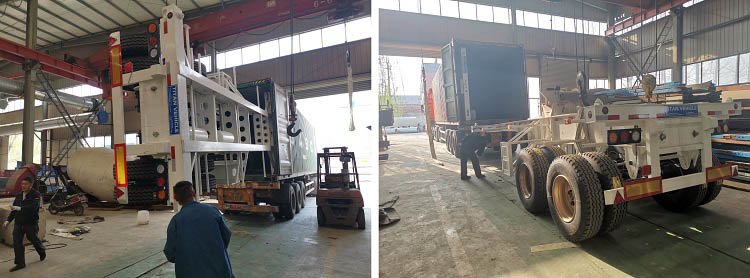

Bhachu 40ft container chassis for sale package before delivery
The diversity of Bhachu container chassis trailers can meet the individual needs of customers. According to customer needs, we can produce Multi-function container chassis trailer, tipper chassis trailer, interlink skeletal trailer, etc.
(1)Common container chassis for sale
Bhachu Multi-function container chassis trailer the most commonly used and the most frequently ordered model by customers. The frame is usually made of steel. It can be used to transport containers of various lengths: 20ft, 40ft or 45ft.
Bhachu container chassis for sale has clearly marked positions and twelve sets of container locks are installed to facilitate the fixing of containers of different sizes and ensure their safety at their destination.
It has a landing gear that is used to enhance stability during loading and offloading operations. It is simple to use and most importantly, affordable. However, the need for external accessories could possibly delay the operations.

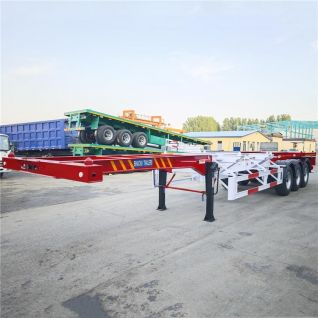

Bhachu container chassis trailer for Nigeria

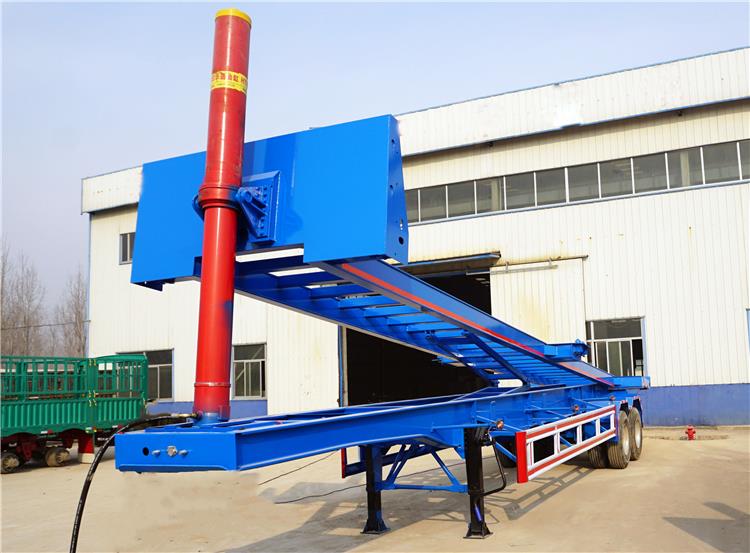

(2)Tipper chassis trailer
Bhachu tipping chassis trailers have a different structure than other Bhachu container chassis trailers. This model of Bhachu trailers has an apparatus that simplifies the process of loading a container on the trailer bed.
The Bhachu container chassis trailer comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process. The pivotal drive on the upper frame translates to a change in the distance between the roller and the securement point of the cable in relation to the lower frame. This results in the lift and movement of the loaded container without the need to search for external equipment such as a winch device to trigger the desired distance.

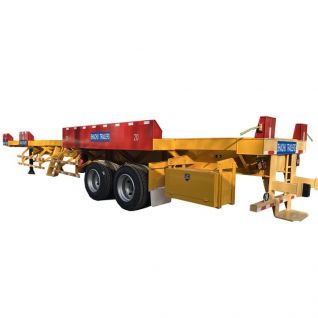

(3)Terminal trailer
The Bhachu terminal chassis trailer for sale is an economically feasible and practical trailer to use. This is an invention that offers a truck chassis for loading and offloading high weight containers without much effort.
It has a simple structure. It comprises a simple truck chassis but of rugged construction.
This Bhachu terminal trailer is adjustable to meet your desired maneuverability conditions for loading and offloading. Adjustments to axle spacing can also be made based on your needs.

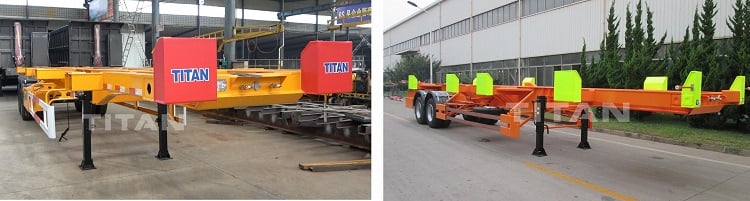

Bhachu terminal container chassis trailer for sale
Bhachu Container chassis trailers come in different shapes and sizes. There are major components and systems that you will find in each one of them and this will be useful in helping you determine which trailer to buy or hire.
It depends on your needs and the regulations set by the authorities in that jurisdiction. Here are the basic defining characteristics and specifications of a container chassis trailer:
Load capacity: The loading capacity for our container chassis trailer ranges from 20 tons – 40 tons. For heavyweight applications, you may want to consider having the 40 tons option. However, the 20 tons option could just be enough for most containers that you want to transport. This is a very important aspect to look at in your choice for Bhachu container chassis trailer.
Design: Owing to its application and use, the Bhachu container chassis trailer is constructed of high strength material. It is a robust structure designed and constructed to get you the services you need without much Fabrication is done through quality welding techniques that are tried and tested to ensure that the trailer meets high standards of quality.
Size: Bhachu Container chassis trailers come in different sizes to take containers with dimensions of 20ft or 40ft. There are also those suited to carry 45ft containers and could be a perfect fit for you to take up more cargo if the laws from your local authorities allow.
Axles: Based on the axle configuration, you will commonly get one that uses 2 axles for 30 tons capacity. For this option, the maximum weight of the 40ft container is 25tons. We can also customize Bhachu 3-axle container chassis for different demands. All these options will be made available to you based on your needs.
Tires: Always confirm the laws and regulations concerning the tire-configuration allowed in your country. Some countries only allow the single tire option and that means it needs the reasonable distribution of tires for the trailer if that is the option you will choose.
shipment of Bhachu container chassis for sale

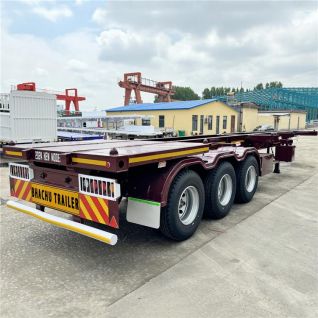

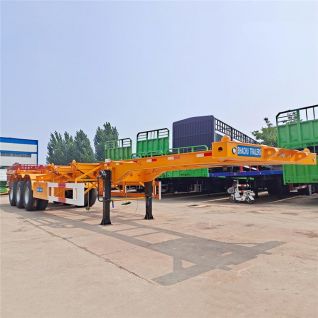

Bhachu skeleton trailers for sale come in various sizes, and the specific size can vary depending on the manufacturer and the intended use.
Length: The length of Bhachu skeleton trailers for sale typically ranges from around 20 feet/40 feet (12.2 meters) to 53 feet (16.2 meters). The most common length for a standard skeleton trailer is 40 feet, but longer trailers, such as 45 feet or 53 feet, are also available.
Width: The width of a Bhachu skeleton trailers for sale is usually standardized at 8.5 feet (2.6 meters), which is the standard width for most commercial trailers.
Height: The height of Bhachu skeleton trailers for sale is generally designed to comply with legal height limits imposed by transportation authorities. The standard height for most skeleton trailers is around 13.6 feet (4.15 meters), which is the maximum legal height in many countries.
Axle Configuration: Bhachu skeleton trailers for sale can have different axle configurations, typically ranging from two to four axles. The number of axles depends on the weight capacity and legal requirements for the specific region. Common configurations include two-axle, three-axle, and four-axle trailers.
It's important to note that the size and specifications of Bhachu skeleton trailers for sale can be customized based on specific requirements and regulations in different countries. When looking for a skeleton trailer for sale, it's advisable to check the local regulations and consider the intended use and transportation needs to determine the appropriate size and configuration for your specific application.

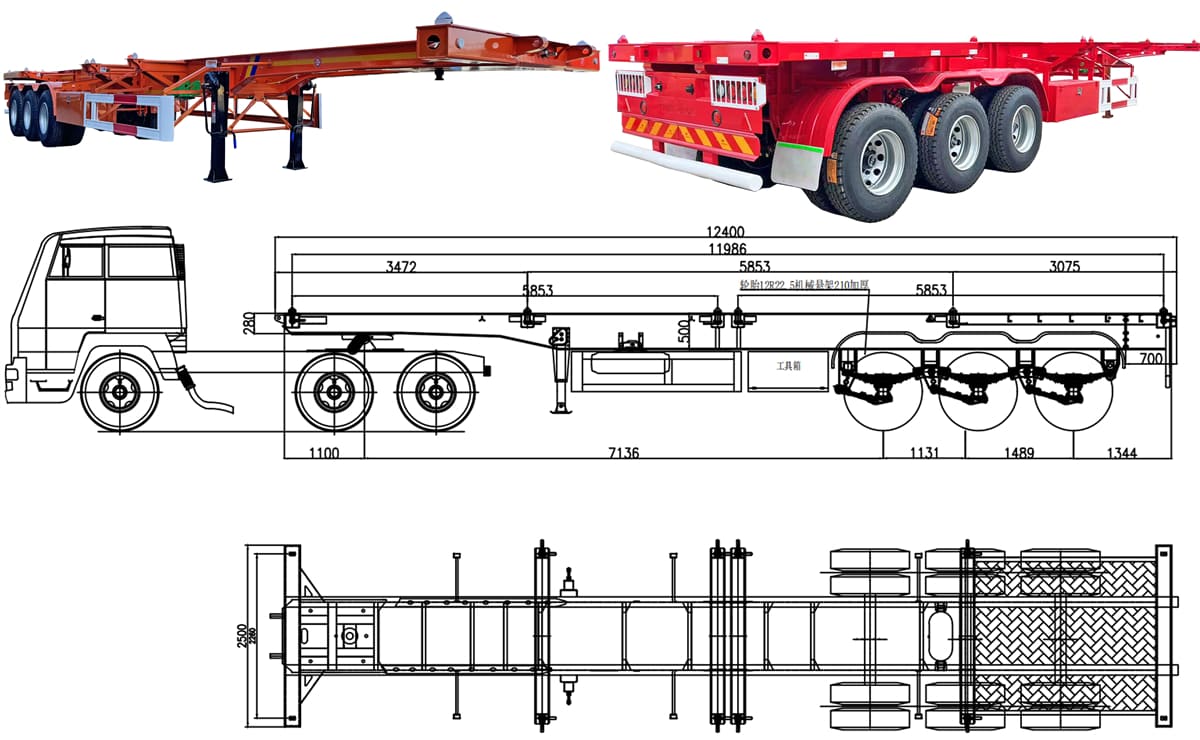

What Size is a Skeleton Trailer for Sale?
