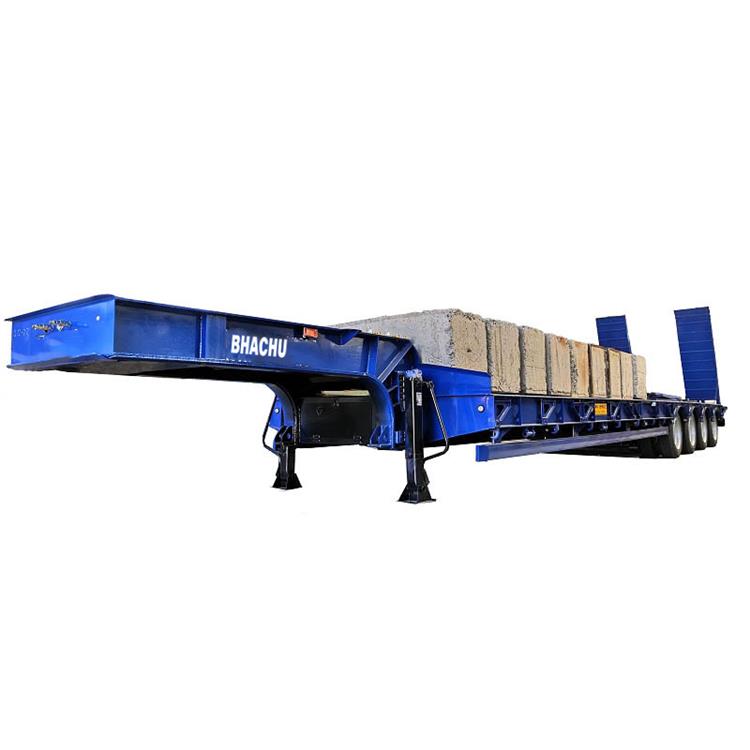

4 Axle 100 Tons Low Loader Trailer

4 Axle 100 Tons Low Loader Trailer-Bhachu

Bhachu Low loader trailer usually use a high-low frame, that is, the front section of the frame is a gooseneck (the traction pin at the front section of the gooseneck is connected to the traction saddle on the tractor, and the back end of the gooseneck is connected to the low bed semi trailer frame). The middle part is the cargo platform (the lowest part of the frame).

This structure can transport a variety of heavy equipment, can also transport other general cargo, can also transport 40-foot containers, 20-foot containers. The export volume of machine carriers of this structural style to Africa is the largest.

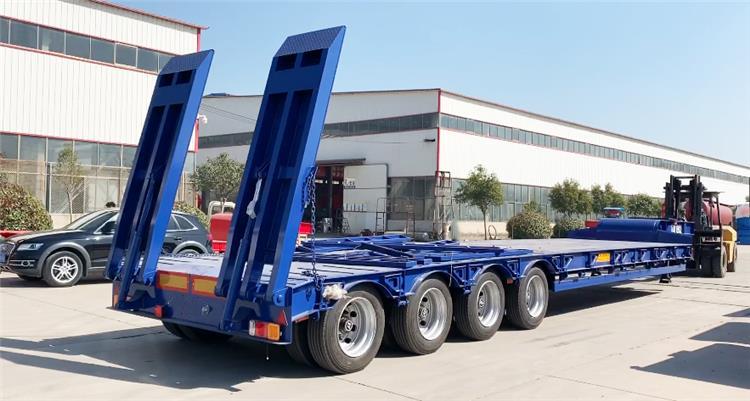

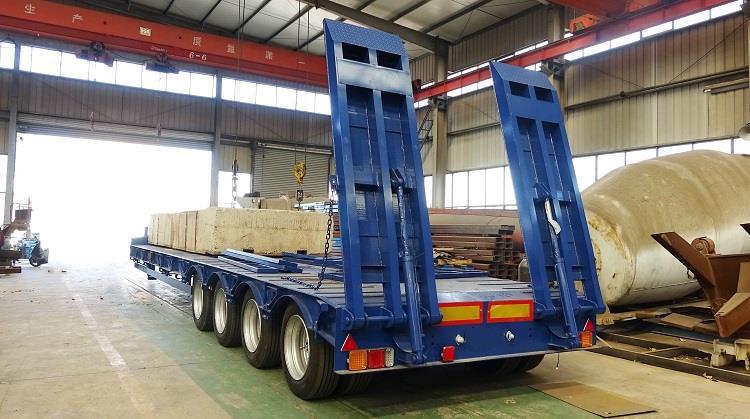

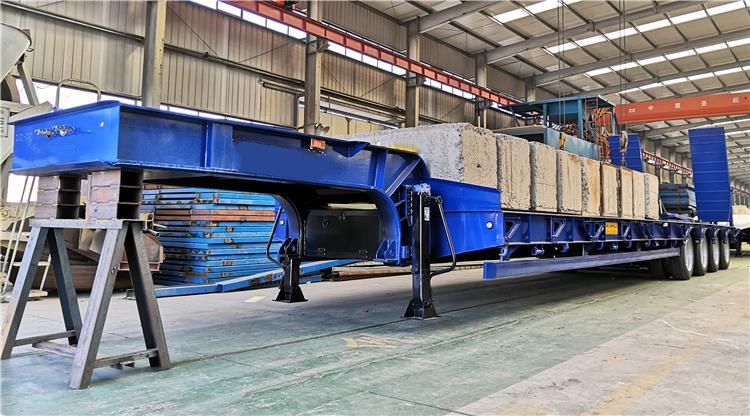

Bhachu 4 Axle 100 Ton Low Loader Semi Trailer for Sale Price In Kenya

Bhachu 4 Axle 100 Ton Low Loader Semi Trailer for Sale Price In Kenya

Bhachu 4 Axle 100 Ton Low Loader Semi Trailer for Sale Price In Kenya

Specification:

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 4 axles, 13T/16T, FUWA / BPW

Tire: 16 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.
