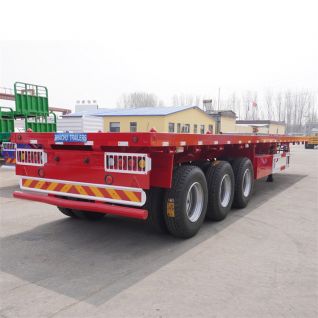

Tri Axle 40ft Flatbed Trailer

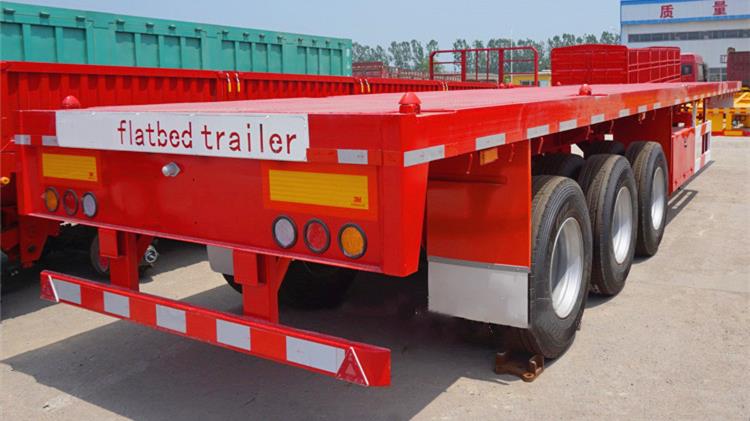

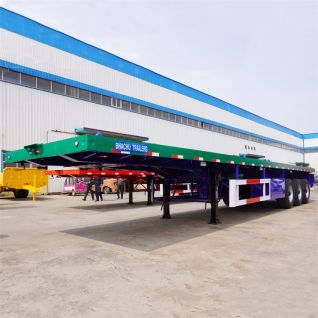

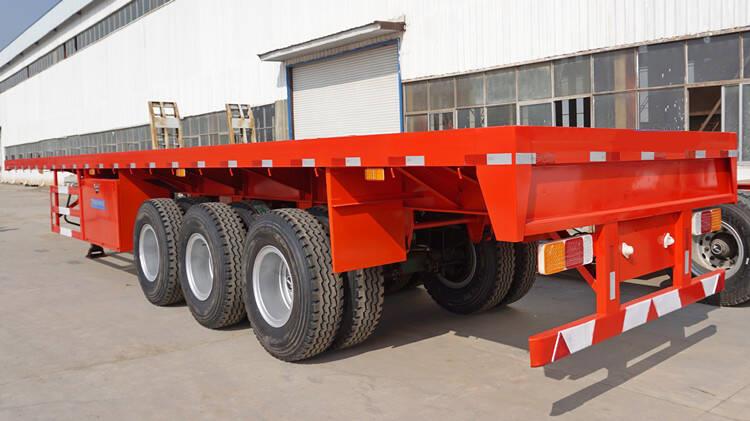

Tri Axle Flatbed Trailer Description:

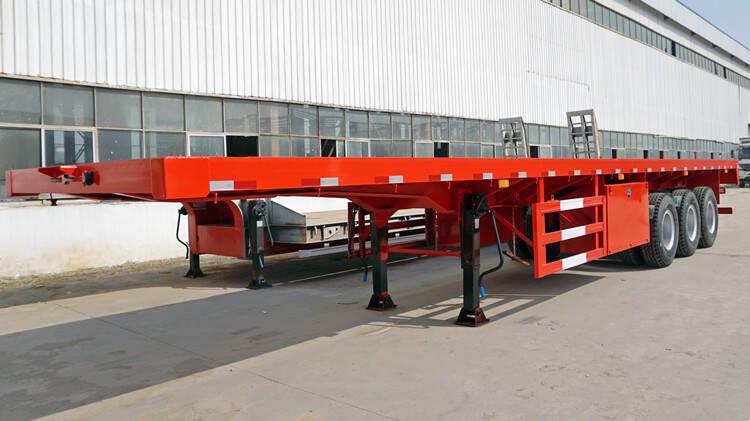

Bhachu trailers tri axle trailer is commonly used to transport various bulk cargoes and containers, 40ft container flatbed semi trailer can transport 1×40ft or 2×20ft container.

Each triaxle trailer for sale comes with its own load rating, size, other systems as would be needed for its use. These specifications are very useful in helping you buy the right triaxle flat bed for your operations.

Tri Axle Flatbed Trailer Price for Sale in Kenya | Bhachu Trailers Prices In Kenya

Tri Axle Flatbed Trailer Price for Sale in Kenya | Bhachu Trailers Prices In Kenya

Tri Axle Flatbed Trailer Price for Sale in Kenya | Bhachu Trailers Prices In Kenya

Bhachu Trailers Prices Specification:

Model: Tri Axle Flatbed Trailer Price

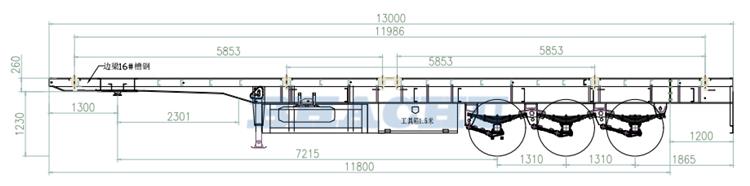

Dimension(mm): 13000x2500x1530mm

Loading capacity(ton): ≤80T

Axles: 3 axles, 13T

Tire: 12 units, 12.00R22.5

Rim: 9.00-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: 28tons

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16# channel steel

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 12 sets

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Advantages:

Bhachu trailers prices in kenya use automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.

The bottom plate reinforced double plate at the gooseneck part of the main beam, and double plate for the middle beam, the deformation range of the trailer during heavy load is small, which is better for use.

Bhachu trailers prices in kenya adopts the Polyurethane paint for all of our trailers which has high adhesion, more beautiful color, and the cost is twice of ordinary paint. But the paint will not fall off after more than five years of.

The floor plate is the 3 mm checkered Plate, strong and durable, not easy to deform.
