Detachable Gooseneck Trailer

Detachable Gooseneck Trailer Price: 25000USD

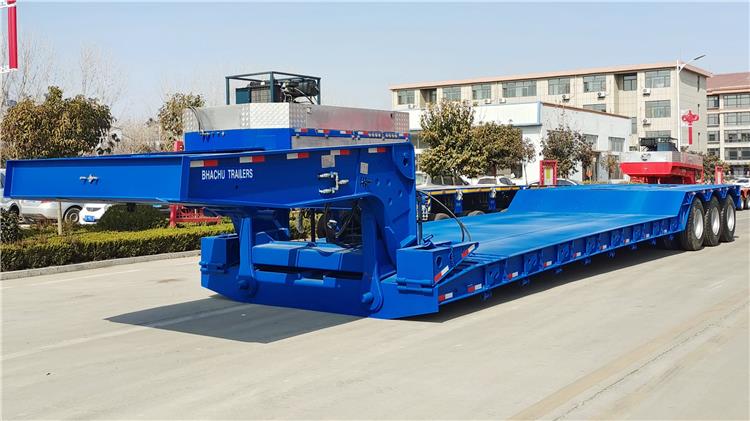

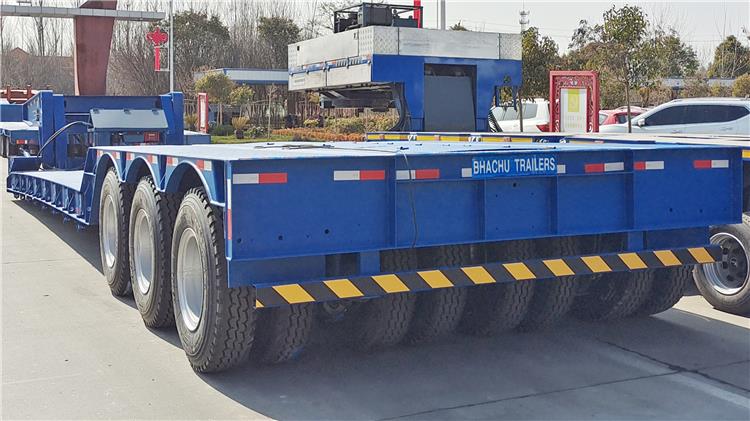

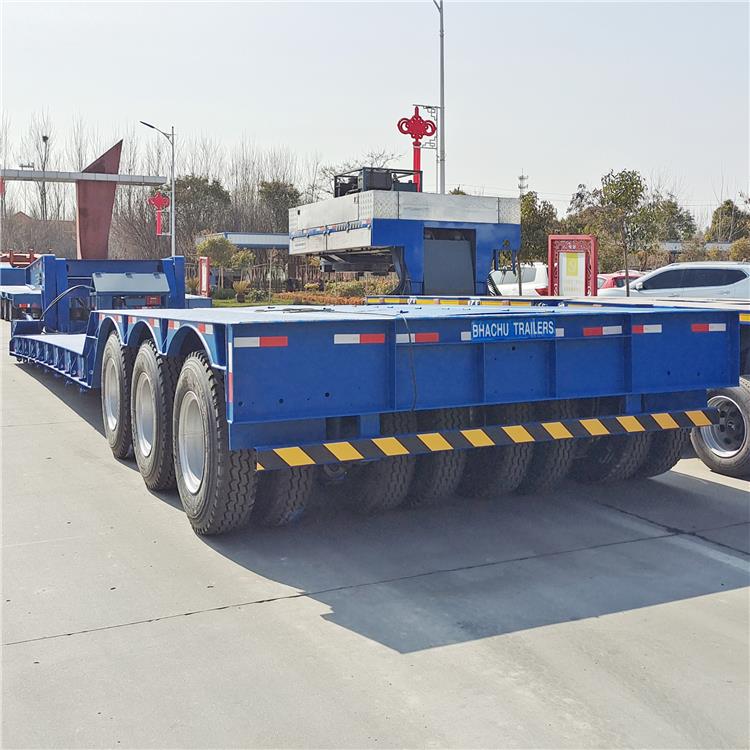

Bhachu detachable gooseneck trailer is with high tensile structure steel with tensile and durable construction. The 3 line 6 axle detachable gooseneck trailer main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

Detachable Gooseneck Trailer Price | Bhachu Trailers for Sale

Detachable Gooseneck Trailer Price | Bhachu Trailers for Sale

Detachable Gooseneck Trailer Price | Bhachu Trailers for Sale

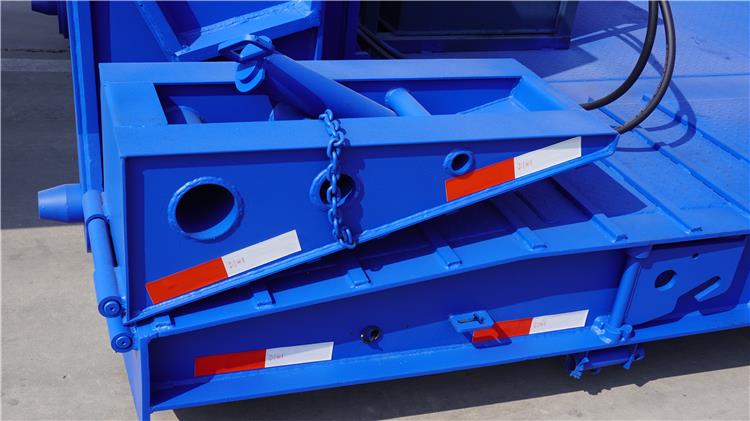

Bhachu detachable gooseneck trailer ramp also equips chains and pins to keep it stable when the trailer is moving.

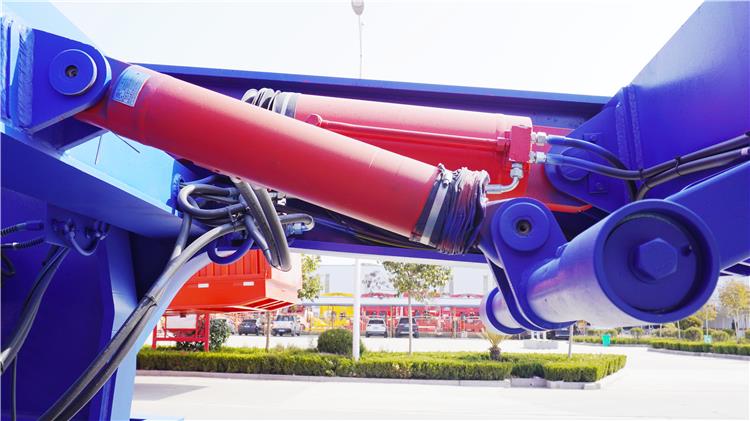

Bhachu detachable gooseneck trailer equips 4 hydraulic cylinders.

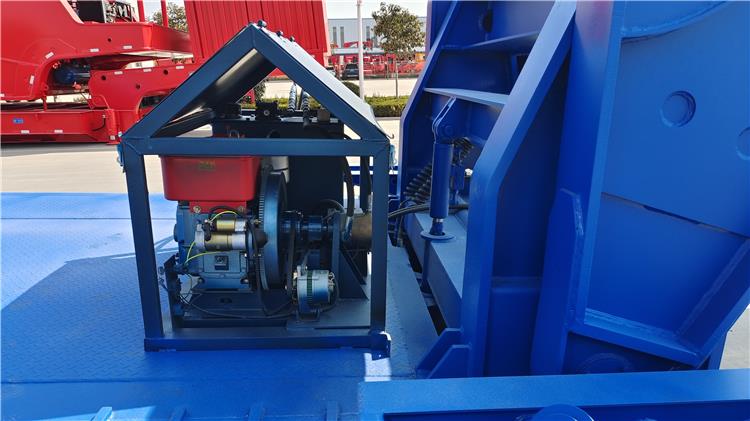

Bhachu detachable gooseneck trailer equips one 12KW diesel engine.

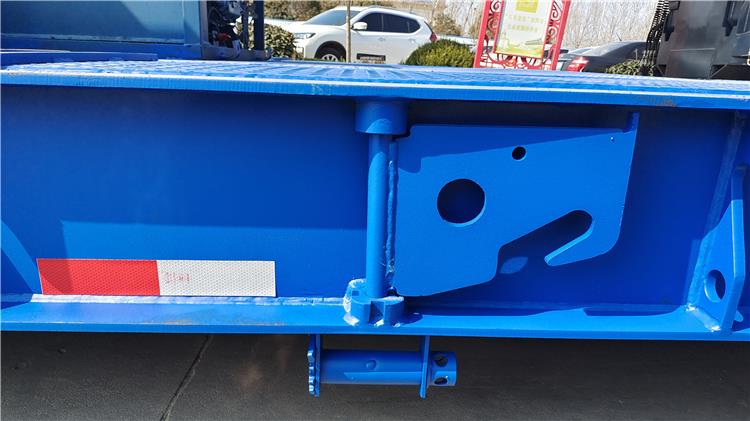

The 3 line 6 axle detachable gooseneck trailer height of the main beam is 500 mm and its side beam adopts  H-shape design

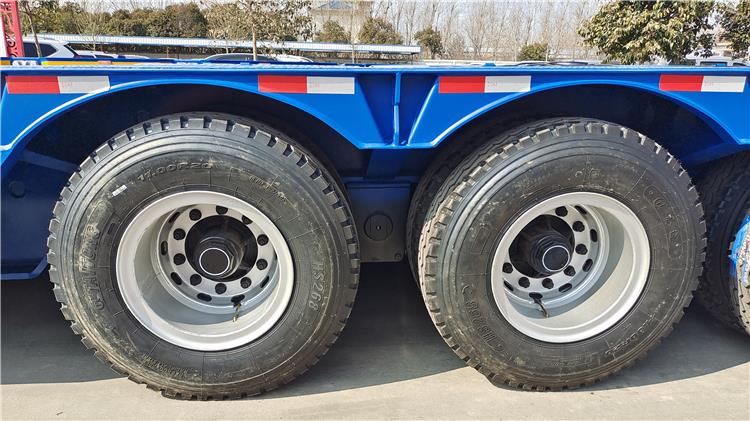

Bhachu 3 line 6 axle detachable gooseneck trailer uses 10.00R20 tries, which has more loading capacity. And use 3.5 inch heavy duty mechanical suspension to produce the trailer,the width of the suspension is 12 cm and its thickness is 10 mm.

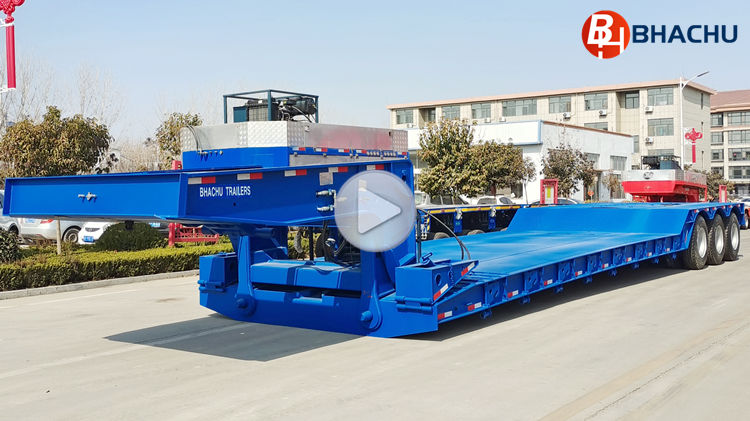

Video of Detachable Gooseneck Trailer

Specification of Detachable Gooseneck Trailer

Overall dimension: 17000mm * 3000mm *2500mm

Loading capacity: 130 ton

Axles: 3 lines 6 axles

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type
