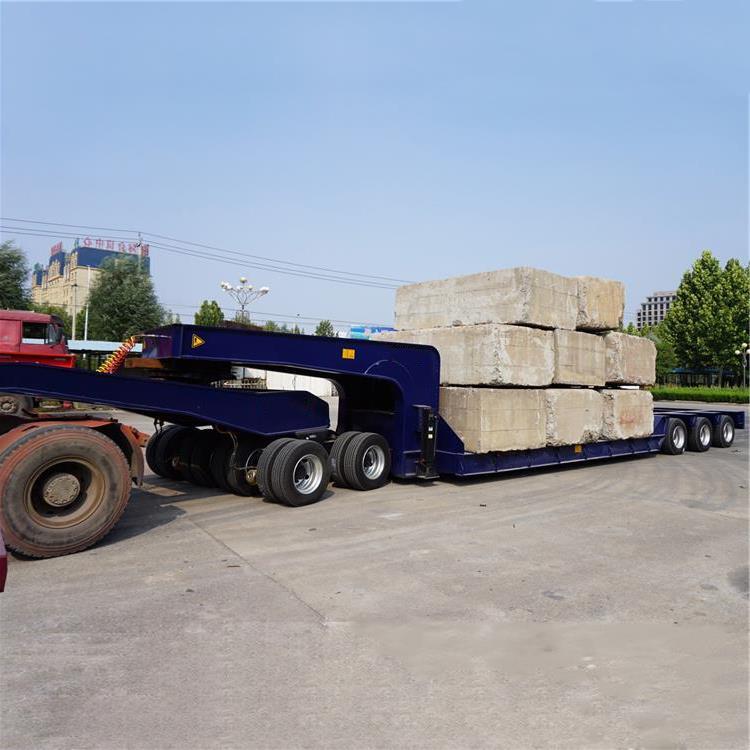

3 Line 6 Axle 150 Ton Excavator Trailer

150 Ton Excavator Trailer Description:

Bhachu 150 ton excavator trailer is widely used, mainly for medium and long-distance freight transportation. 150 ton excavator trailerare commonly used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, agricultural machinery, and other heavy-duty cargo.

Due to the low center of gravity of the lowbed transport, 150 ton excavator trailer can transport huge cargo and avoid damage to the cargo. Heavy duty 150 ton excavator trailer transport is designed to solve the overload problem of large tonnage. Usually, ordinary 3 line 6 axle 150 ton excavator trailer use a structure of two axles and one line, but dolly trailers can have multi-lines, such as 4 axles and 16 tires, and are usually used to transport heavy cargo. Each axle of a dolly trailer loads 50 percent of the weight.

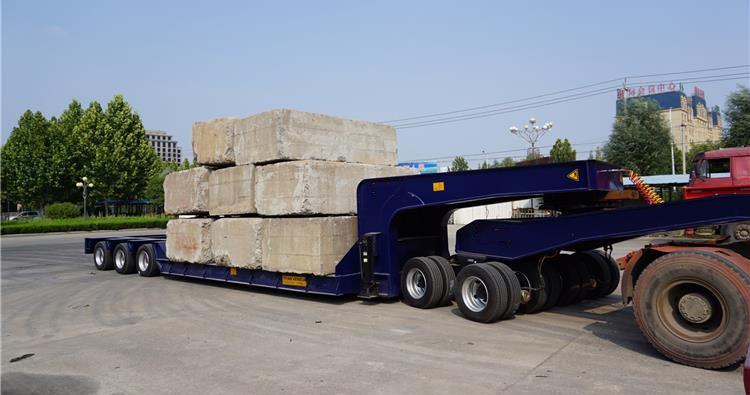

Heavy Duty 3 Line 6 Axle 150 Ton Excavator Trailer for Sale In Kenya Nairobi

Heavy Duty 3 Line 6 Axle 150 Ton Excavator Trailer for Sale In Kenya Nairobi

Heavy Duty 3 Line 6 Axle 150 Ton Excavator Trailer for Sale In Kenya Nairobi

Specification:

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 150T

Axle: 3 line 6 axles, 13T/16T, FUWA / BPW

Tire: 24 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.
