45000 L Aluminium Fuel Tanker Trailer

Aluminium Fuel Tanker Trailer Description：

The Bhachu tanker trailer adopts an advanced design concept. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safe, also beneficial.

Bhachu offers carbon steel, stainless steel, or aluminum material tanker trailers. The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With the different compartments, like two, three, four, or more compartments, to load different liquid.

The liquid tanker semi trailer is used for carrying different liquids like fuel, petrol, water, palm oil, bitumen asphalt, etc.

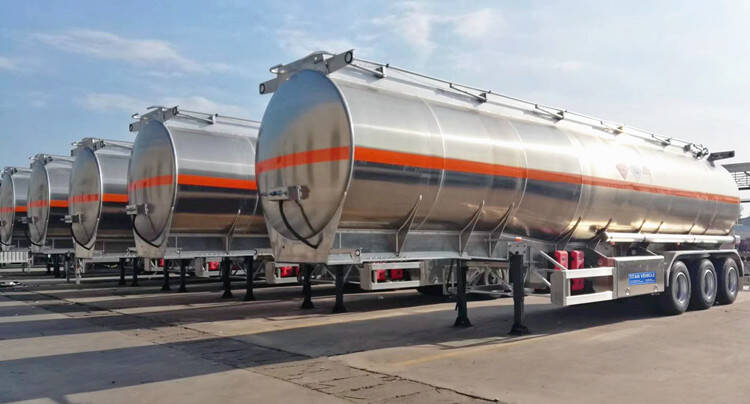

Bhachu 45000 L Aluminium Fuel Tanker Trailer for Sale In Kenya Kisumu

Bhachu 45000 L Aluminium Fuel Tanker Trailer for Sale In Kenya Kisumu

Specification：

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(liters): 45000 liters

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Aluminum Alloy

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Advantage:

1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

2. The tank body is automatically welded by an advanced large-scale special welding machine.

3. The Bhachu tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.

4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.

5. The waved board reduces the impact of the liquid on the tanker.

6. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.

7. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.
