55000L Aluminum Tanker Trailer

Aluminum Tanker Trailer Description:

Bhachu 55000L Aluminum Tanker Trailer body is longitudinally welded and there are only four longitudinal welds in the tank, reducing the risk of welding. If a collision occurs, the tank will not break. Ensure the safety of the tanker and extend its service life.

Bhachu 55000L Aluminum Tanker Trailer uses Q345 low carbon alloy steel for steel tanker, the thickness is 5mm thick, and the tank is very strong.

Bhachu 55000L Aluminum Tanker Trailer has a longer service life. The appearance of LPG tank trailer is more beautiful, and it is easy to clean without painting.

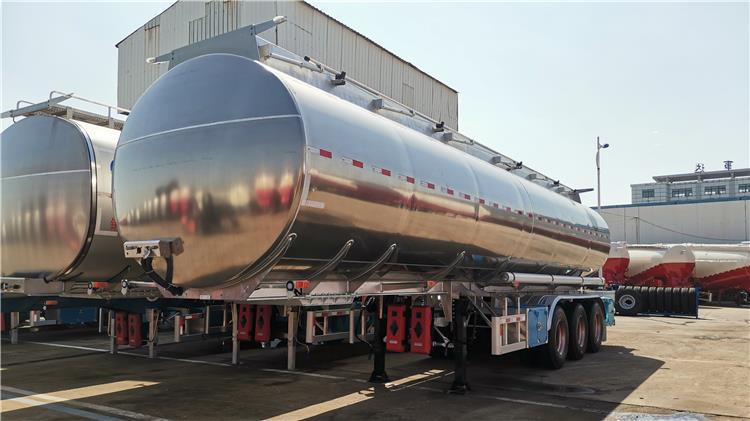

Bhachu 55000L Aluminum Tanker Trailer for Sale In Kenya Lamu

Bhachu 55000L Aluminum Tanker Trailer for Sale In Kenya Lamu

Bhachu 55000L Aluminum Tanker Trailer for Sale In Kenya Lamu

Specification：

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(liters): 55000 liters

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Aluminum Alloy

Bottom Valve: Aluminum API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Tips for Bhachu 55000L Aluminum Tanker Trailer:

When does the brake pad change?

For transportation safety, stable braking performance is essential.

We should always check the brake system, checking the wear level of the brake pads.

We can check it through the observation hole, the limit thickness of Fuhua axle brake pads is 6mm.

When it is worn to a limit, it must be replaced.
