6 Axle 45CBM Tip Trailer

6 Axle 45CBM Tip Trailer Description：

Bhachu 6 axle 45cbm tip trailer have different load capacities: 24cbm tipper semi trailer, 30 cubics, 35 cubics, 40 cbm tipper trailer, 60 cubic meter tipper trailer, 35ton dump tipper trailer, 50 ton tipper trailer, 40ft container tipper trailer.

Bhachu 6 axle 45cbm tip trailer equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

In civil engineering, it often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The dump trailer carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.

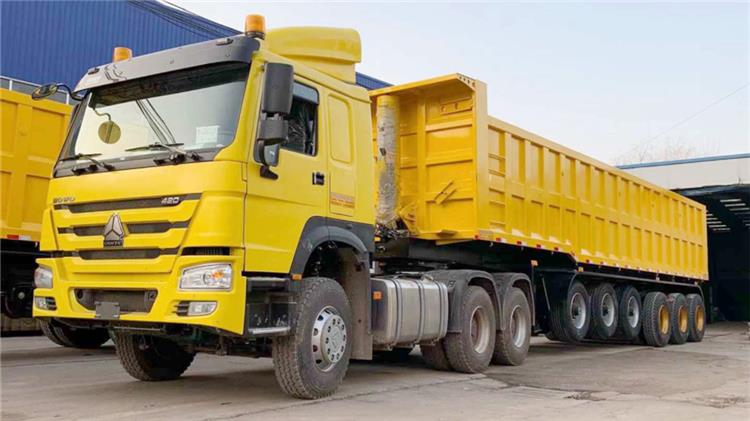

Bhachu 6 Axle 45CBM Tip Trailer for Sale Near Me In Kenya

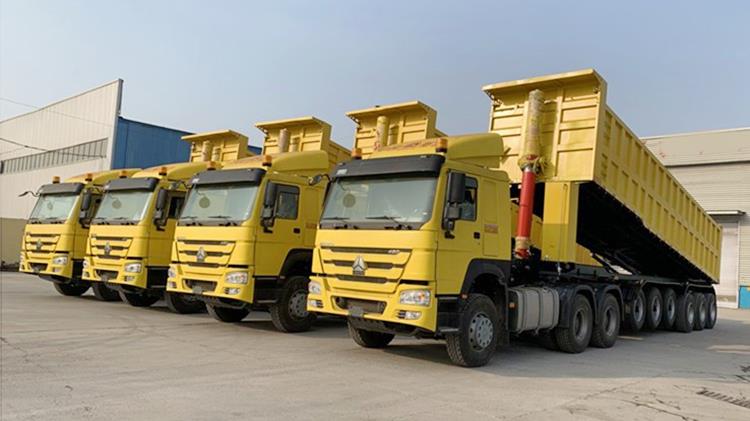

Bhachu 6 Axle 45CBM Tip Trailer for Sale Near Me In Kenya

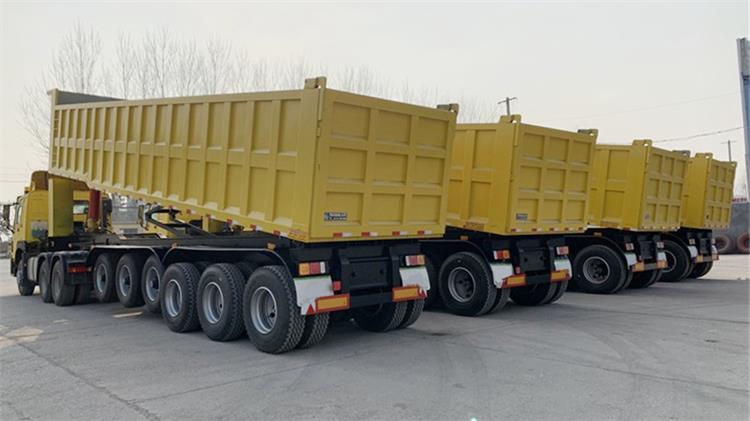

Bhachu 6 Axle 45CBM Tip Trailer for Sale Near Me In Kenya

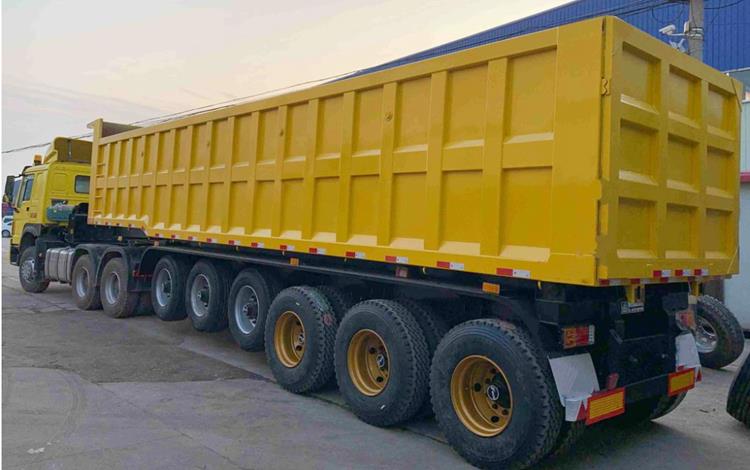

Bhachu 6 Axle 45CBM Tip Trailer for Sale Near Me In Kenya

Specification：

Dimension: 12000mm * 2600mm *1800mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(cbm): 45cbm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Advantage:

1. Double-plate main beam for tipper semi trailer, which have a stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.
