40 Ft Container Chassis Trailer

40 Ft Container Chassis Trailer Price: 8400USD

Bhachu trailers kenya 40 ft container chassis trailer is specially designed for sea container and marine missions, combining safe and fast container loading and unloading. Bhachu 40 ft container chassis trailer also has a long lifespan

Bhachu trailers kenya 40 ft container chassis trailer is mainly used for container transportation supporting ships, ports, waterways, highways, transfer stations, bridges, tunnels, and multimodal transportation.

Container Chassis Trailer for Sale | 40 ft Shipping Container Trailer | Bhachu Industries Ltd

Container Chassis Trailer for Sale | 40 ft Shipping Container Trailer | Bhachu Industries Ltd

Container Chassis Trailer for Sale | 40 ft Shipping Container Trailer | Bhachu Industries Ltd

Shipping Container Trailer Specification：

Tare Weight: About 7.1T

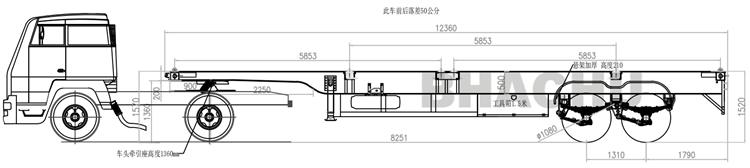

Dimension(mm): 12360x2500x1520mm

Bhachu Industries Ltd Axles: 2 axles, 13T/16T ,FUWA/ BPW

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Bhachu Industries Ltd Container Chassis Trailer Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

Bhachu Prices King Pin: JOST brand 2.0 or 3.5 inches (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material: Q345B steel

Shipping Container Trailer Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Bhachu Prices Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats

Tool Box: 1m x 0.5m x 0.5m (The toolbox contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Bhachu Prices Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (especially intended for oversea market)

Bhachu Trailers Kenya ABS: Optional

Light: LED light (especially intended for the oversea market)

Container Chassis Trailer Voltage: 24V

Video of 40Ft/ 20Ft Container Chassis
