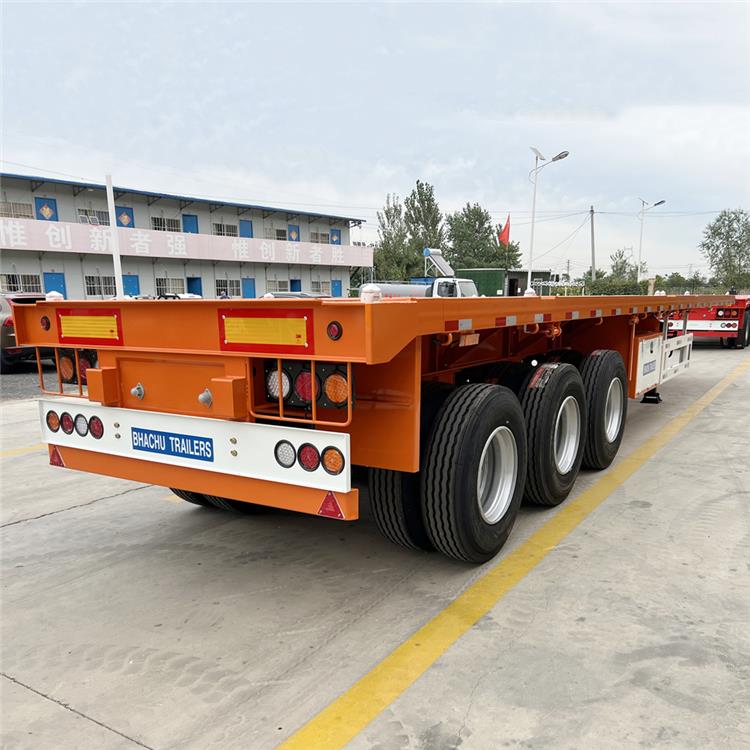

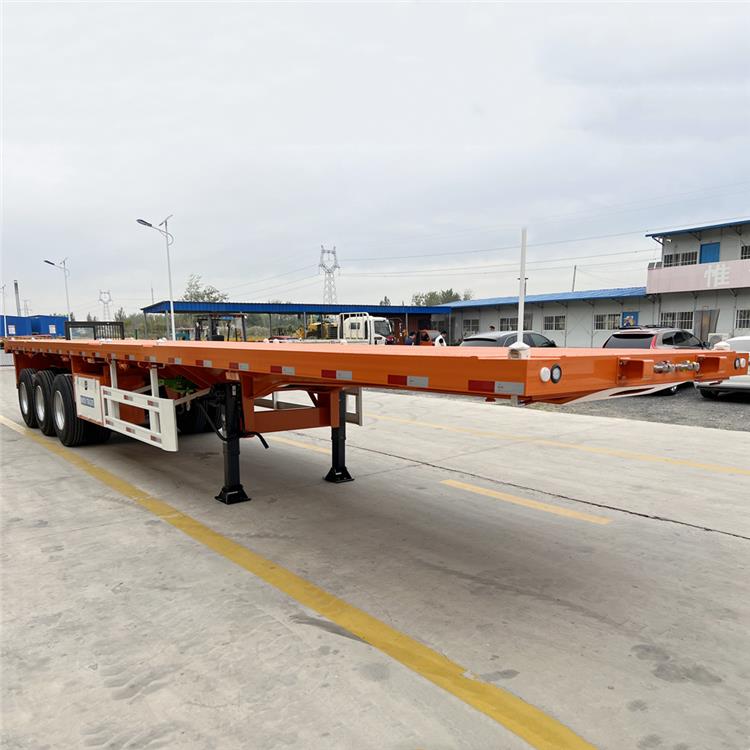

12.5m Tri Axle Flatbed Trailer

12.5m Tri Axle Flatbed Trailer Price: 8600USD

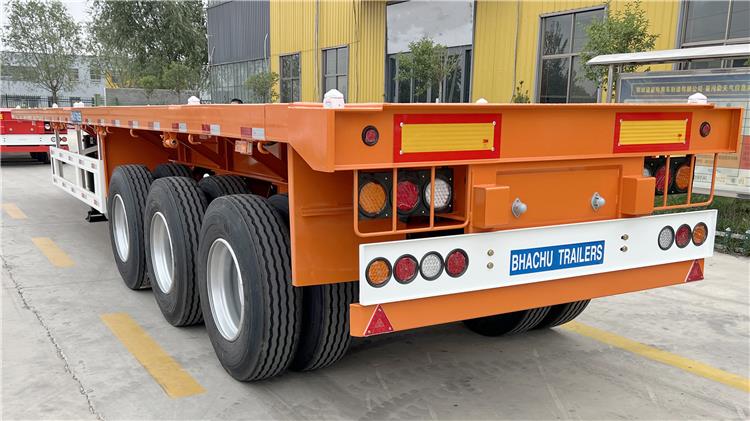

12.5m tri axle flatbed trailer is common types of container carrier trailers. We can also offer the 3 axle trailer 48ft, 53ft and other flatbed trailer sizes.

40 Ft flatbed trailer is mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

12.5m Tri Axle Flatbed Trailer for Sale | Bhachu Trailers Prices In Kenya

12.5m Tri Axle Flatbed Trailer for Sale | Bhachu Trailers Prices In Kenya

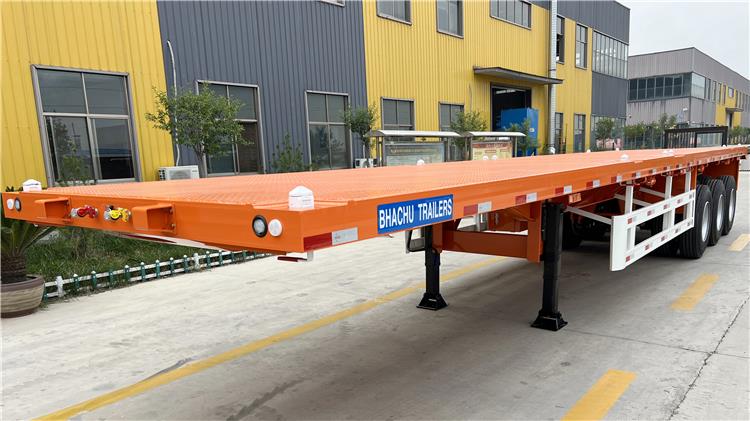

12.5m Tri Axle Flatbed Trailer for Sale In Kenya | Bhachu Trailers Price

12.5m Tri Axle Flatbed Trailer for Sale | Bhachu Trailers Prices In Kenya

12.5m Tri Axle Flatbed Trailer for Sale | Bhachu Trailers Prices In Kenya

12.5m Tri Axle Flatbed Trailer for Sale | Bhachu Trailers Prices In Kenya

12.5m Tri Axle Flatbed Trailer for Sale | Bhachu Trailers Prices In Kenya

12.5m Tri Axle Flatbed Trailer for Sale | Bhachu Trailers Prices In Kenya

Specification of Tri Axle Trailer:

Model: tri axle trailer

Dimension(mm): 12500x2500x1510mm

Main Beam:

Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Loading capacity(ton): ≤60T

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Suspension: Mechanical suspension

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Features of Tri Axle Flatbed Trailer

Bhachu trailers prices In Kenya adopt an advanced submerged arc welding technique to produce the trailer, there is no welding interface between the middle, bottom and upper plate of main beam.

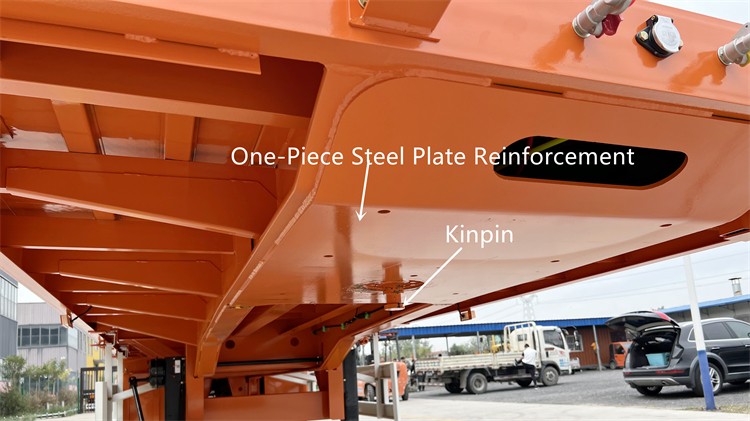

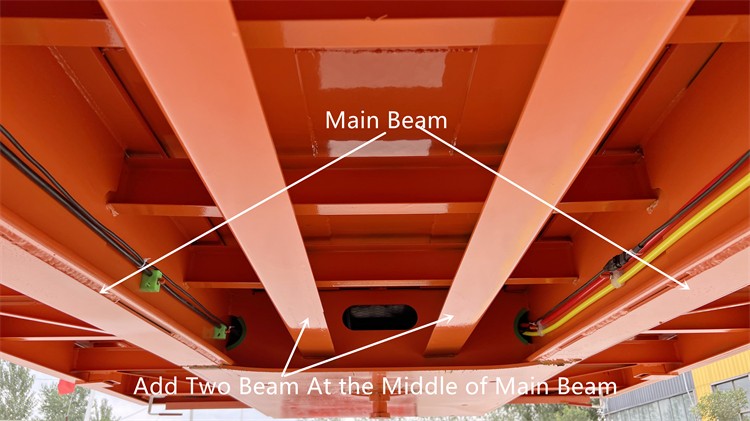

Bhachu trailers prices In Kenya reinforce the main beam.As for the gooseneck parts of the main beam, the middle plate has been reinforced by a double plate, which makes the main has small deformation even if loading heavy things.The bottom plate of the gooseneck part also is reinforced by a double plate.

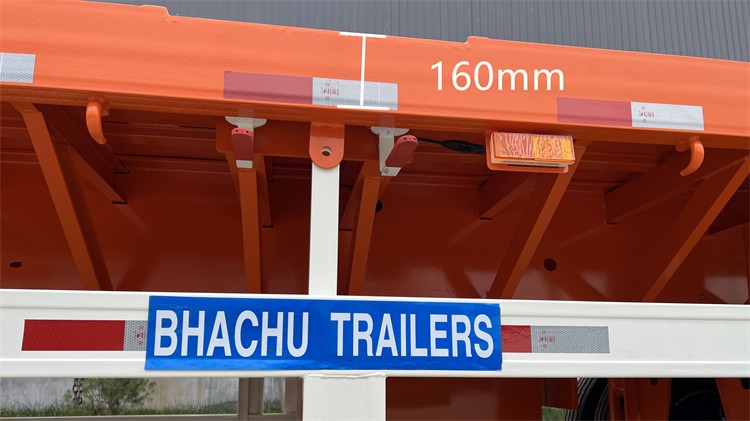

Bhachu trailers prices In Kenya used 6 carlings to produce the frame of the flatbed trailer, which not only makes the trailer's frame stronger but also makes the platform never sag.

The middle plate is 500 mm high,8 mm thick; upper plate is 14 mm thick,140 mm wide; bottom is 16 mm thick,140 mm wide.

The main beam of Bhachu trailers prices In Kenya flatbed trailers is made of Q345 high-strength steel, which has more loading capacity. The service life will be more than 10 years.

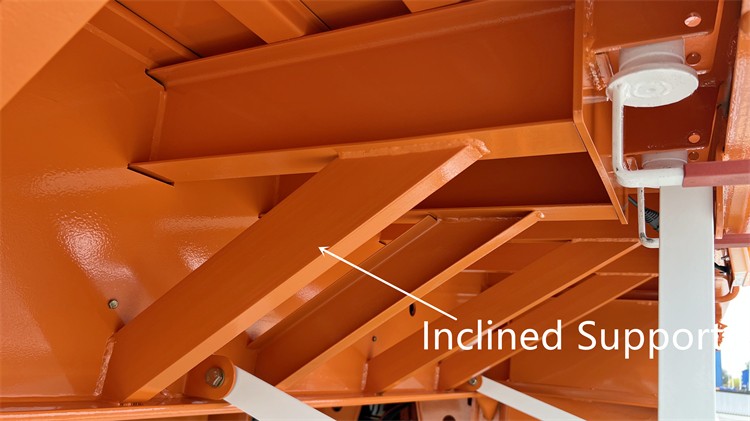

Bhachu trailers prices In Kenya use high-density inclined support to support the trailer's beams, every beam has its own support. And the distance between every two inclined support is only 50 cm.

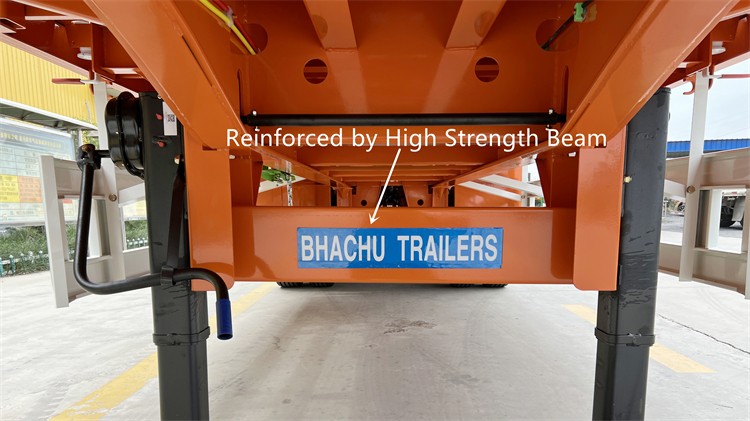

For the landing gear parts, Bhachu trailers price use a high-strength steel beam to reinforce it, which makes the landing gear more strength and has a longer service life.

Here is tri axle flatbed trailer heavy-duty mechanical suspension, whose thickness is 8 mm and the diameter of the kingpin is 70 mm. Strong suspension means bhachu tri axle flatbed trailer will have higher stability.

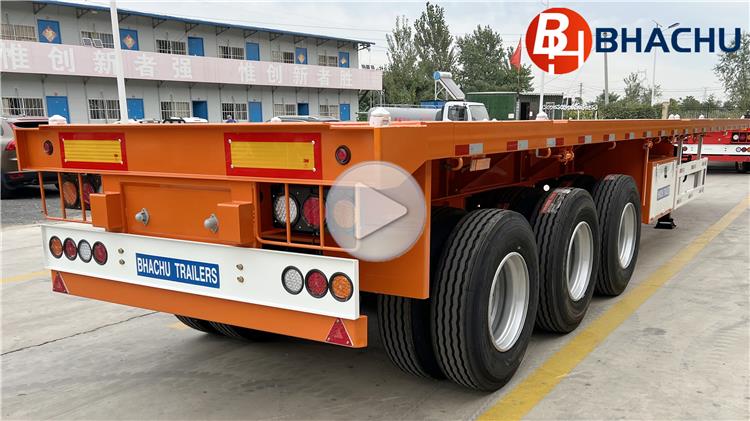

Video of 40 Ft Flatbed Trailer
