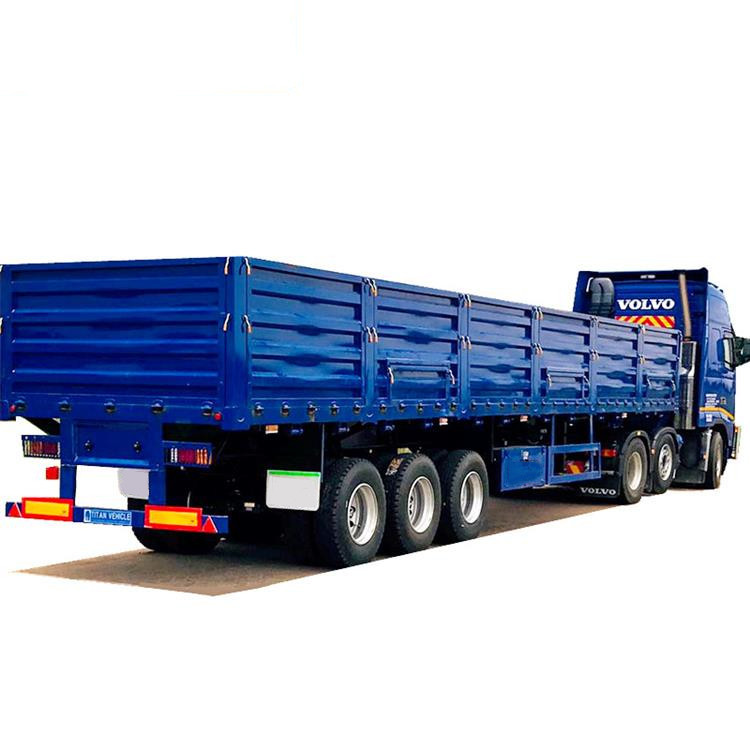

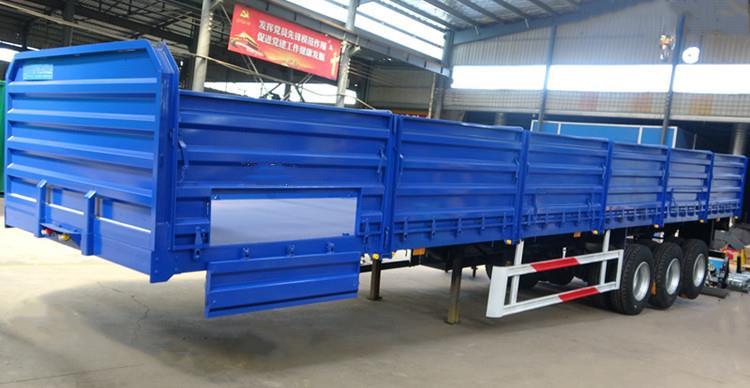

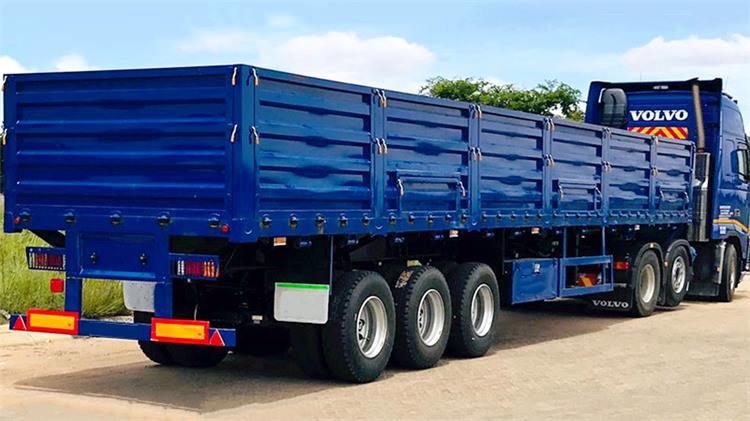

60 Ton Grain Transport Trailer

Grain Transport Trailer Description：

60 Ton grain transport trailer with airbag suspension was popular with logistics companies as its multipurpose application. It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, is very widely used in the transportation industry.

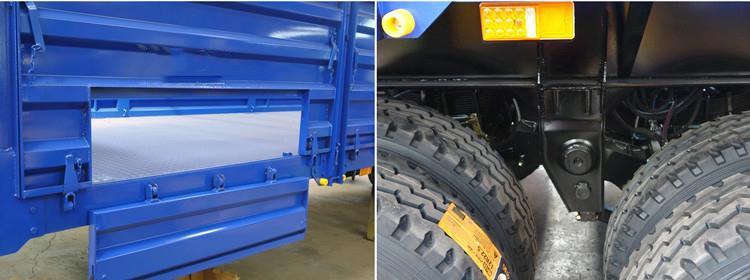

Bhachu adopts high strength steel material to manufacture the side wall trailer, it can make the trailer have a higher loading capacity and a longer service life. And trailers floor is a checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

Tri Axle Grain Transport Trailer for Sale In Kenya | Bhachu Trailers Prices

Tri Axle Grain Transport Trailer for Sale In Kenya | Bhachu Trailers Prices

Tri Axle Grain Transport Trailer for Sale In Kenya | Bhachu Trailers Prices

Specification：

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
