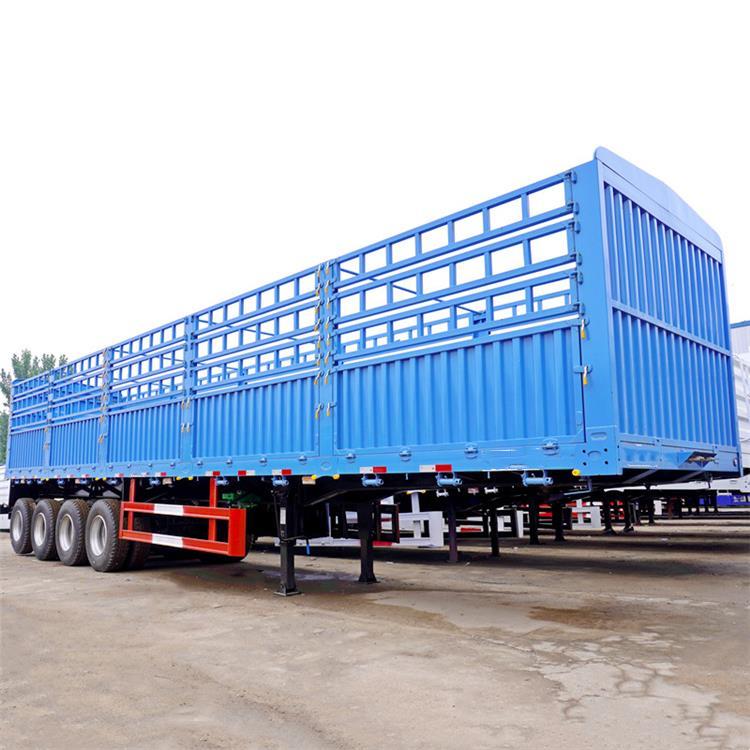

4 Axle Stake Semi Trailer

4 Axle Stake Semi Trailer Description：

Gooseneck stake semi trailer was popular by logistics companies as its multipurpose application. It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, is very widely used in the transportation industry.

Bhachu 4 axle stake semi trailer deeply loved by foreign customers due to main material used high-quality steel-Q345. It has high-strength, strong and sturdy features, stability and safety when operating in harsh road conditions.

In addition, the 4 axle stake semi trailer accessories and configuration all adopt the international famous brand and China famous brand, this makes the trailer not only increase long service life but aslo improve operating efficiency and save maintenance costs.

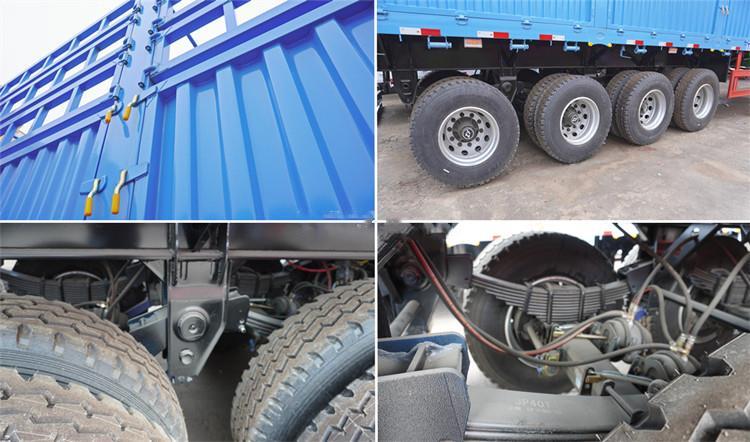

4 Axle Stake Semi Trailer for Sale In Kenya Nairobi - Bhachu Trailer Prices

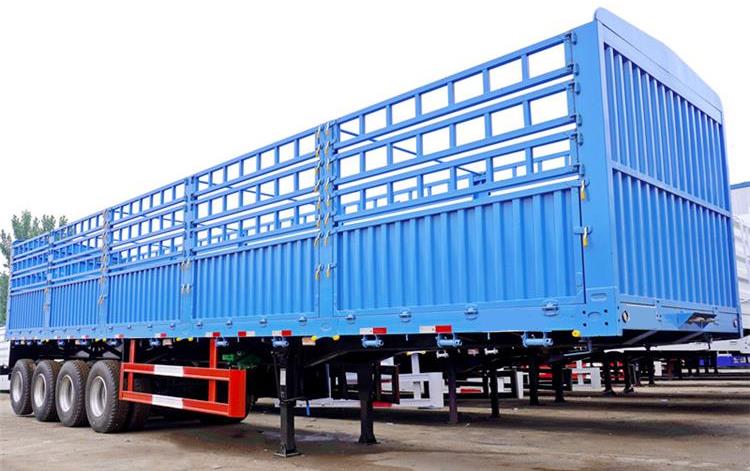

4 Axle Stake Semi Trailer for Sale In Kenya Nairobi - Bhachu Trailer Prices

Specification:

Dimension(mm): 13000x2600x3420mm

Trailer Sides: 1800mm

Loading capacity(ton): 60T

Axles:4 axles, 13T/16T ,FUWA/ BPW

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
