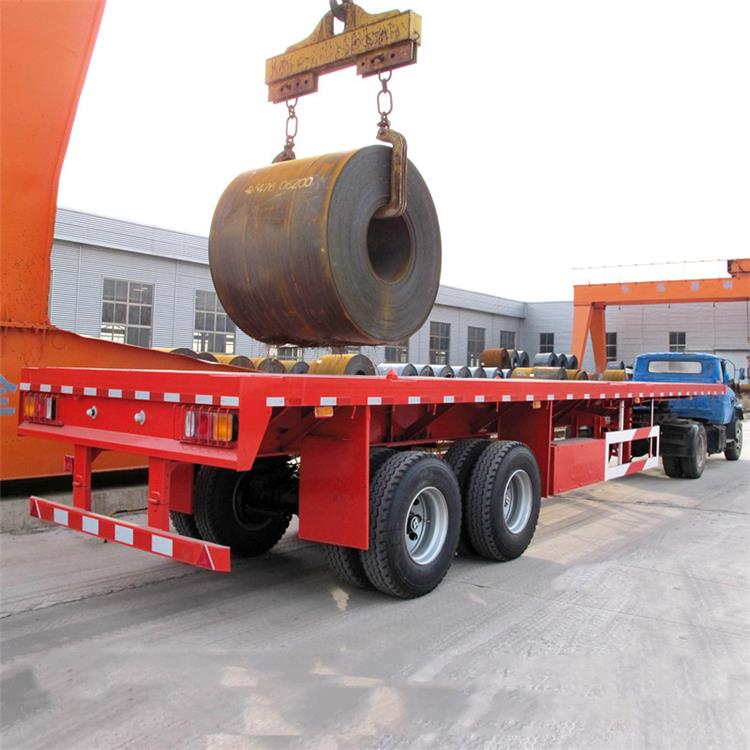

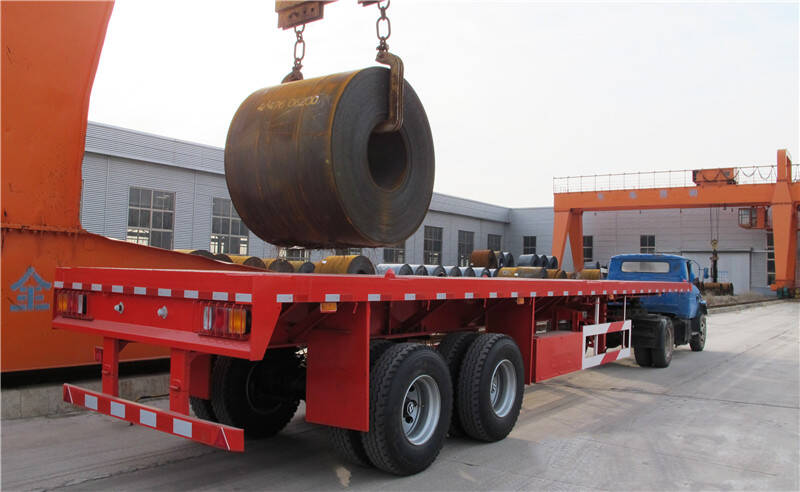

2 Axle Flat Bed Trailer with Bogie Suspension

Flat Bed Trailer with Bogie Suspension Description：

Bhachu adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

To make sure the service life of the 2 axle flat bed trailer with bogie suspension, all the spare parts we adopt are World Famous brand.

Bhachu 2 Axle Flat Bed Trailer with Bogie Suspension for Sale In Ethiopia

Bhachu 2 Axle Flat Bed Trailer with Bogie Suspension for Sale In Ethiopia

Bhachu 2 Axle Flat Bed Trailer with Bogie Suspension for Sale In Ethiopia

Specification:

Model: Bhachu 2 Axle Flat Bed Trailer with Bogie Suspension

Dimension(mm): 12400mm * 2500mm *1550mm

Loading capacity(ton): ≤80T

Axles: 2 axles, 13T

Tire: 8 units, 12.00R22.5

Rim: 9.00-22.5

Suspension: Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: 28tons

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16# channel steel

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 12 sets

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Advantage:

1. Bhachu 2 Axle Flat Bed Trailer with Bogie Suspension uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

2. Also 2 Axle Flat Bed Trailer with Bogie Suspension is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5. Hight Quality container locks, make sure the stable and safety of the loads.
