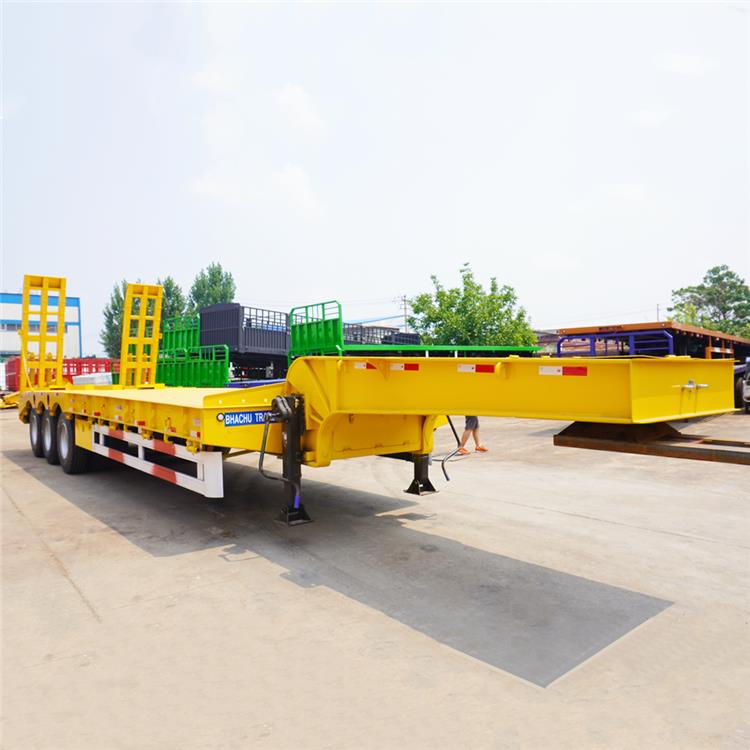

80 Ton Low Bed Trailer

80 Ton Low Bed Trailer Price: 15400USD

This Bhachu trailers prices 80 ton low bed truck that can transport a variety of heavy equipment, can also transport other general cargo, can also transport 40-foot containers, 20-foot containers. The export volume of machine carriers of this structural style to Africa is the largest.

When loading mechanical equipment on a 80 ton low bed truck, it is usually loaded from the rear of the lowbed trailers, that is, by moving the mechanical equipment from the rear wheel frame or removing the wheels, and then fixing the mechanical equipment to 80 ton low bed truck.

3 Axle 80 Ton Low Bed Truck for Sale In Kenya - Bhachu Trailers Prices

3 Axle 80 Ton Low Bed Truck for Sale In Kenya - Bhachu Trailers Prices

3 Axle 80 Ton Low Bed Truck for Sale In Kenya - Bhachu Trailers Prices

3 Axle 80 Ton Low Bed Truck for Sale In Kenya - Bhachu Trailers Prices

3 Axle 80 Ton Low Bed Truck for Sale In Kenya - Bhachu Trailers Prices

Specification of Low Bed Truck:

Overall dimension: 12500mm * 2500mm *3700mm

Loading capacity(T): 80T

Axle: 3 axles, 13T/16T, FUWA / BPW

Tire: 12 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Mechanical ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

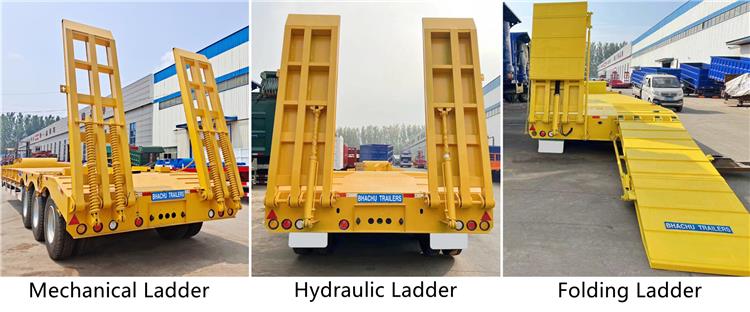

Different Types of Low Bed Trailer Ladder

There are two types of low bed truck trailer for sale ramps, namely, a mechanical ramp and a hydraulic ramp.

Mechanical Ladder: A manual mechanism or a spring is used to lift the ramp to the right height. Lowbed trailer for sale mechanical ramp is cheap and easy to maintain.

Hydraulic Ladder: With this type of ramp, low bed truck in Kenya of hydraulic cylinder is used instead of a spring to lift the ramp. 3 Axle low bed truck hydraulic ramp is efficient and easy to use. You can move heavy cargo fast with a hydraulic ramp. However, the ramp is more expensive than a mechanical ramp.
