80 Ton Drop Deck Trailer

80 Ton Drop Deck Trailer Description:

The Bhachu 4 axle 80 ton drop deck trailer can be designed to carry 30 tons, 40 tons, 60 tons, 80 tons, 100 tons, 120 tons, 150tons. It's main cargo platform is low, which ensures the stability of transportation. Lowbed Trailer can also carry a wide range of goods, which is suitable for the transportation of various steels such as a variety of mechanical equipment, large objects, highway construction equipment, power station equipment and machinery.

Bhachu 4 axle 80 ton drop deck trailer main beam adopts submerged arc welding technology, that ensures the smooth, sturdy welding seams and avoids welding-opening problems. And also improve the loading capacity of equipment trailer.The excavator trailer for sale main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm.

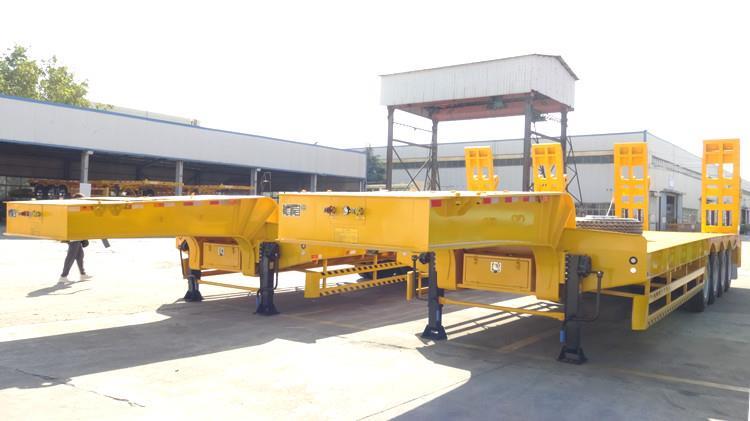

Bhachu 4 Axle Drop Deck Trailer for Sale In Kenya Vanga

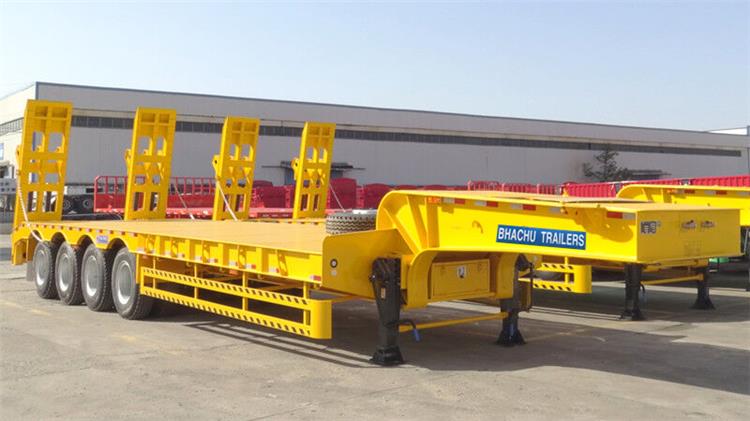

Bhachu 4 Axle 80 Ton Drop Deck Trailer for Sale In Kenya Vanga

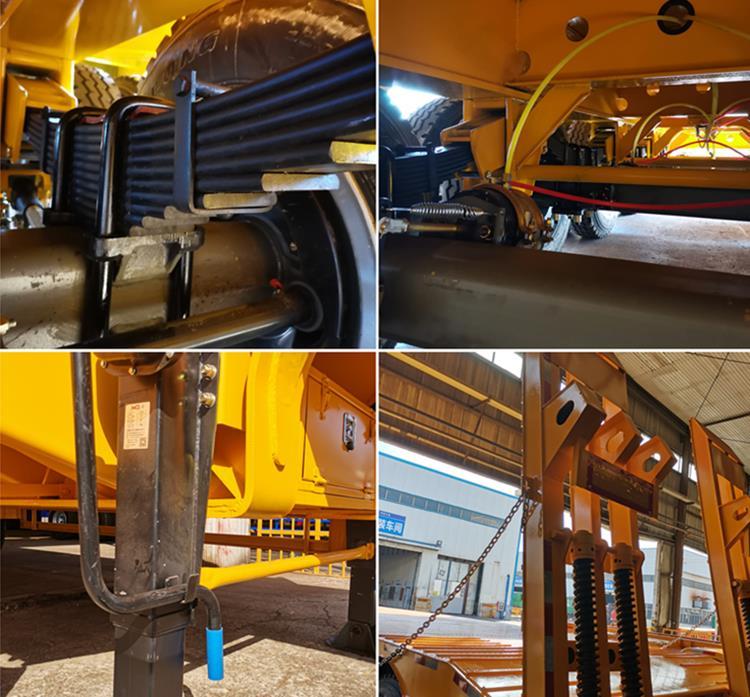

Bhachu 4 Axle 80 Ton Drop Deck Trailer for Sale In Kenya Vanga

Drop Deck Trailer Specification:

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 4 axles, 13T/16T, FUWA / BPW

Tire: 16 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Low loader trailer main beam adopts submerged arc welding technology, that ensures the smooth, sturdy welding seams and avoids welding-opening problems.

2. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.

3. Side beam adopts “H” steel, the durable design avoid the side beam to have the deformation.

4. polyurethane paint, with long service lift, and avoid the drop deck trailer get rust.

5. World famous brand spare part, ensure high quality and save costs.
