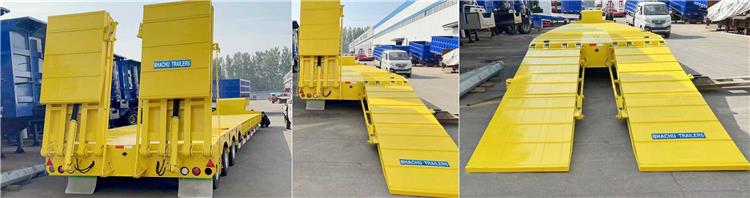

The ramp of the 80 Ton low bed truck trailer is welded with H60 high-strength steel plate, which has a strong bearing capacity and effectively ensures that the weight of heavy equipment such as excavators will not be deformed or damaged through the spring ramp.

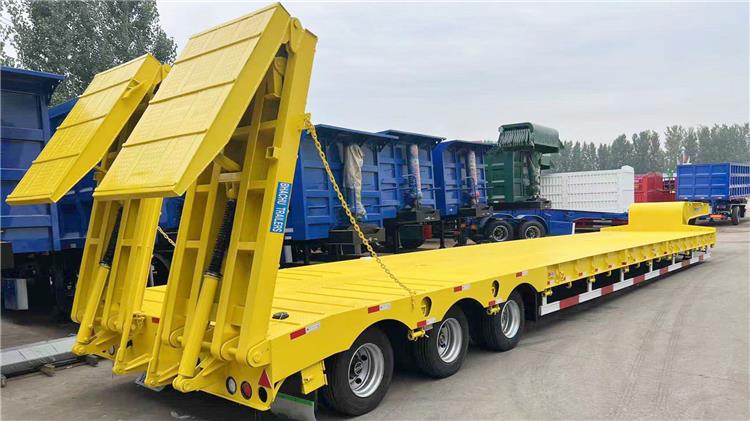

80 Ton low bed truck trailer with folding ladder is designed with hydraulic folding mechanism and auxiliary support mechanism, which can not only perform automatic folding and unfolding, but also play a stable auxiliary supporting role when heavy vehicles pass, which greatly improves the overall work efficiency.
80 Ton low bed truck trailer with folding ladder ramp is used to move cargo on low bed truck trailer. The length of the ramp depends on the weight of the cargo. Moving heavy loads on a low bed truck trailer requires longer ramps.
Using a longer ramp reduces the incline and makes it easier to move heavy loads.

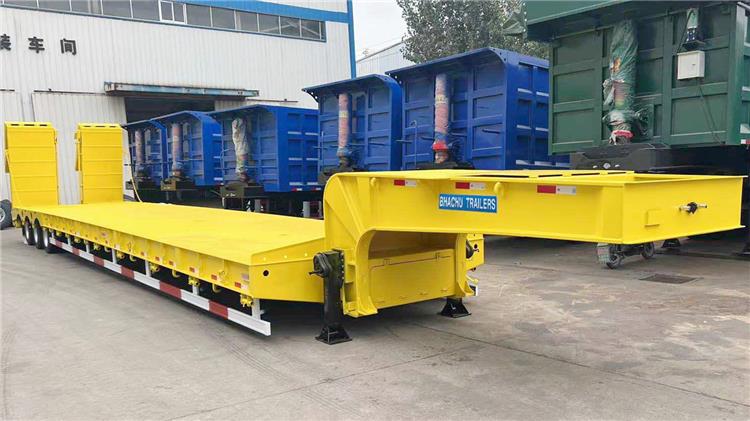

Bhachu 80 Ton Low Bed Truck Trailer with Folding Ladder for Sale In Kenya
Bhachu 80 Ton Low Bed Truck Trailer with Folding Ladder for Sale In Kenya
Bhachu 80 Ton Low Bed Truck Trailer with Folding Ladder for Sale In Kenya

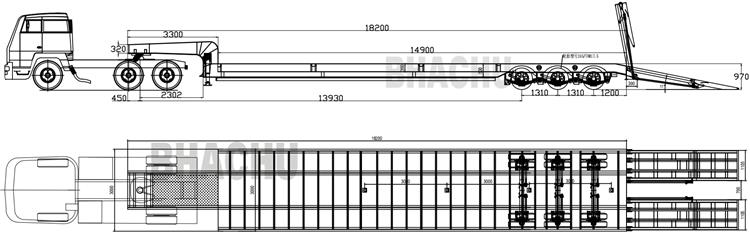

Overall dimension: 18200mm * 3000mm *3400mm
Loading capacity(T): 680 ton
Axle: 3 axles, 13T/16T, FUWA / BPW
Tire: 12 units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: folding hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
