90 Ton Heavy Haul Trailer

Hydraulic 90 Ton Heavy Haul Trailer Description:

Hydraulic 90 ton heavy haul trailer is widely used, mainly for medium and long-distance freight transportation. Hydraulic 90 ton heavy haul trailer are commonly used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, agricultural machinery, and other heavy-duty cargo.

Bhachu Hydraulic 90 ton heavy haul trailer can satisfy the concentrated force, the anti-bump, the distortion resistance and adopts HG60 High Strength Steel Material. we use it to make sure that our Bhachu Hydraulic 90 ton heavy haul trailer is with long service life and to avoid unnecessary maintenance.

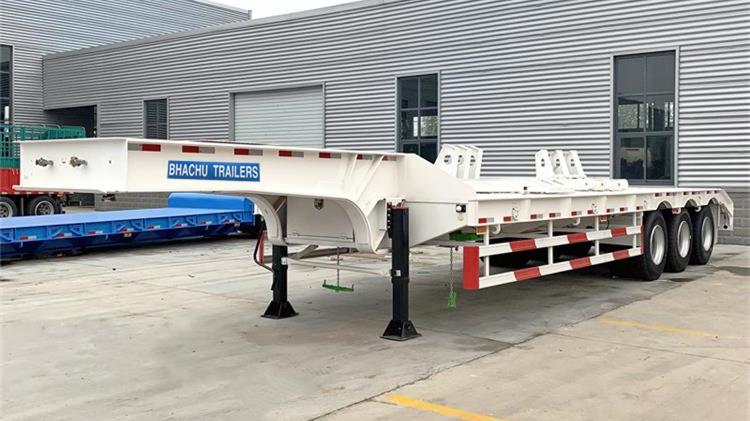

Bhachu Hydraulic 90 Ton Heavy Haul Trailer for Sale In Somalia

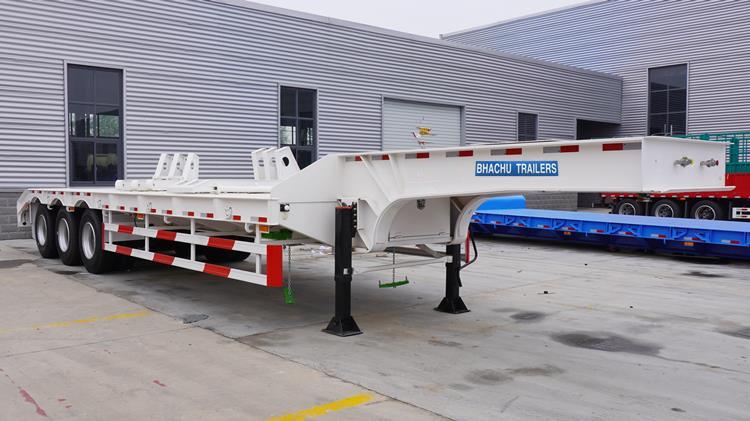

Bhachu Hydraulic 90 Ton Heavy Haul Trailer for Sale In Somalia

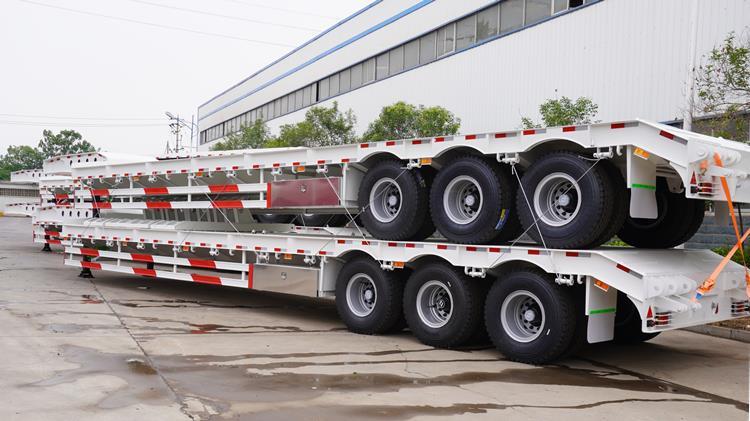

Bhachu Hydraulic 90 Ton Heavy Haul Trailer for Sale In Somalia

Specification:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 90T

Axle: 3 axles, 13T/16T, FUWA / BPW

Tire: 12 units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps are made of high strength steel, with high loading capacity, will not happen to the deformation when carrying heavy equipment.

4. Polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare parts, ensure high quality and save costs.
