Tri Axle 80 Ton Low Bed Trailer

Tri Axle 80 Ton Low Bed Trailer Price: 13100USD

Bhachu prices tri axle 80 ton low bed truck series products are suitable for a variety of mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and machinery. They are widely used, efficient and fast.

The lower the platform height of the tri axle 80 ton low bed truck, the better the stability and safety. Our tractor low loader trailer for sale has a large carrying capacity when transporting extra high and medium cargo.

Tri Axle 80 Ton Low Bed Truck Trailer for Sale | Bhachu Trailers Kenya | Bhachu Prices

Tri Axle 80 Ton Low Bed Truck Trailer for Sale | Bhachu Trailers Kenya | Bhachu Prices

Tri Axle 80 Ton Low Bed Truck Trailer for Sale | Bhachu Trailers Kenya | Bhachu Prices

Tri Axle 80 Ton Low Bed Truck Trailer for Sale | Bhachu Trailers Kenya | Bhachu Prices

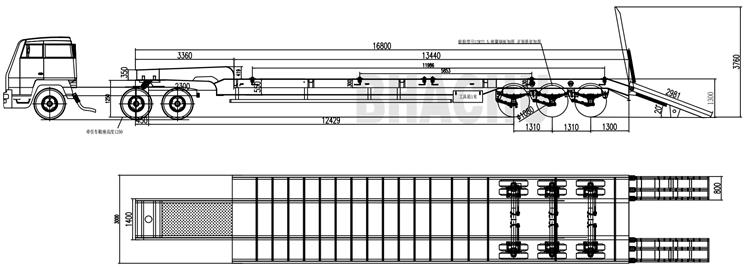

Specification of Low Bed Truck:

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 80T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for oversea markets)
