100 Ton Lowboy Gooseneck Trailer

100 Ton Lowboy Gooseneck Trailer Description:

100 Ton lowboy gooseneck trailer is convenient for heavy loads transportation. There are many kinds of lowboy equipment trailers Bhachu can make, such as 2/3/4 axle 60/80/120/150ton lowboy trailers. 100 Ton lowboy gooseneck trailer is an important part of the lowboy equipment trailers.

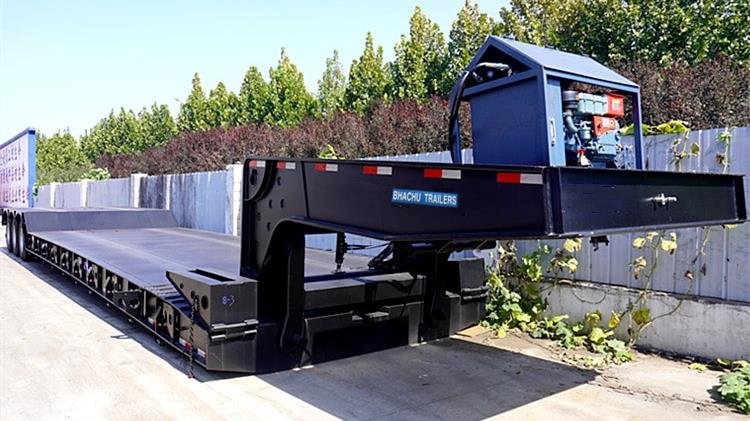

Bhachu 100 Ton Lowboy Gooseneck Trailer for Sale in Kenya Mombasa city Limits

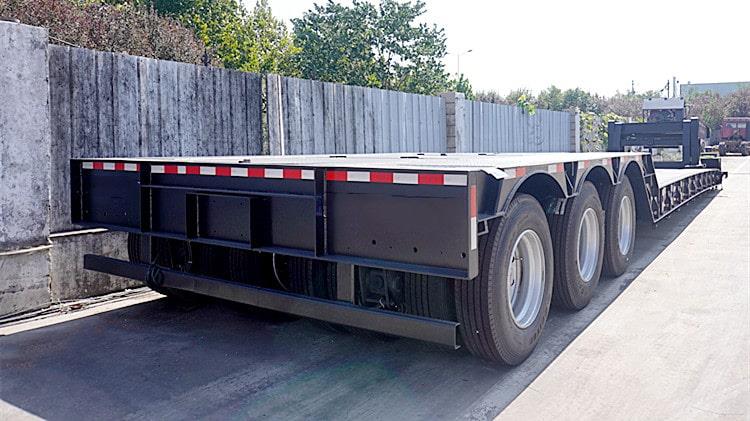

Bhachu 100 Ton Lowboy Gooseneck Trailer for Sale in Kenya Mombasa city Limits

Bhachu 100 Ton Lowboy Gooseneck Trailer for Sale in Kenya Mombasa city Limits

Specification:

Overall dimension：17000mm * 3000mm *2500mm

Loading capacity:  100 ton

Axles：3 lines 6 axles

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for oversea markets)

Voltage: 24V

Toolbox: 1 set

Painting: Polyurethane paint, with long service life, and avoid the vehicle getting rust

Advantage:

1. The lower working platform height for the transport of high and voluminous loads.

2. Bhachu lowboy trailer is with high tensile structure steel with tensile and durable construction.

3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

5. The suspension ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.

6. World famous brand spare part, ensure high quality and save costs.
