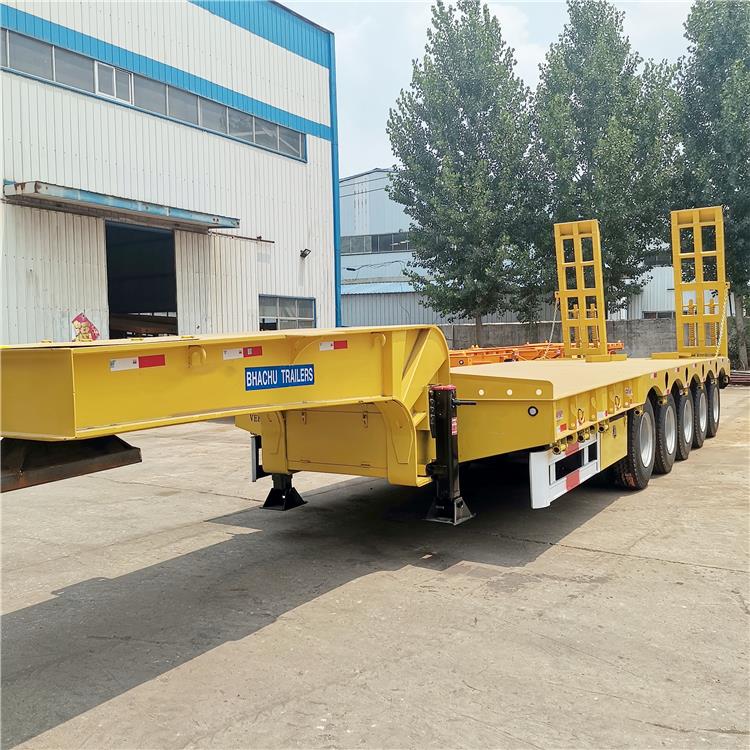

5 Axle 120 ton low bed truck trailer has a flat plate, concave beam and tire leakage type structure. The frame of lowboy equipment trailers is stepped, and the longitudinal beam section is I-shaped.Lowboy equipment trailers has the characteristics of rigid height and strong height.
The low level of the column of the 5 axle 120 ton low bed truck trailer frame ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.

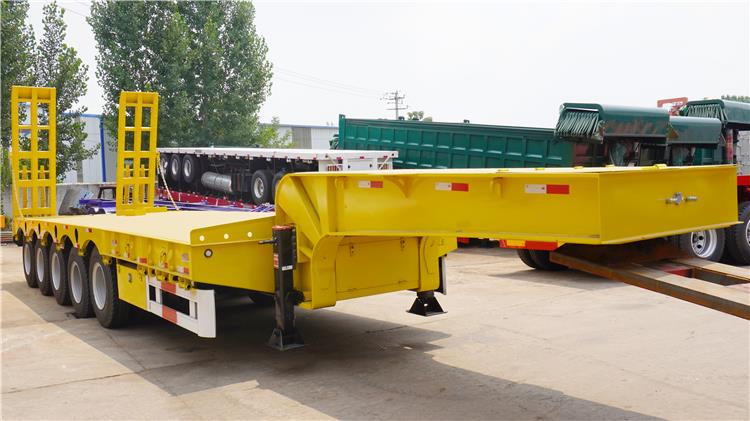

5 Axle 120 Ton Low Bed Truck Trailer for Sale In Ghana

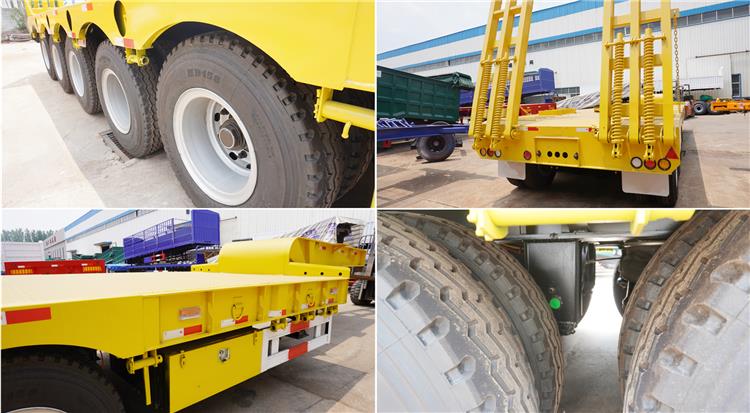

5 Axle 120 Ton Low Bed Truck Trailer for Sale In Ghana
5 Axle 120 Ton Low Bed Truck Trailer for Sale In Ghana
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 120 T
Axle: 5 axle, FUWA / BPW
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
