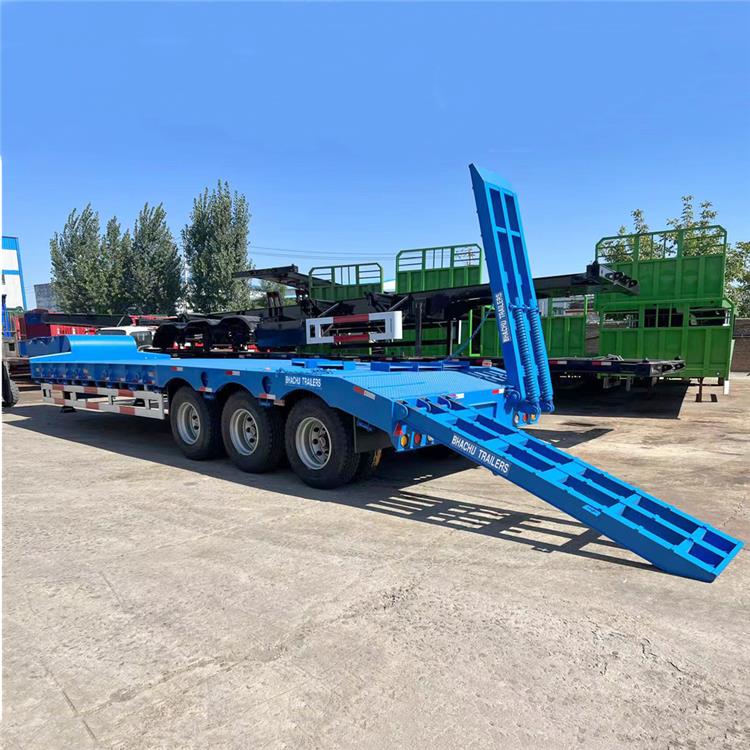

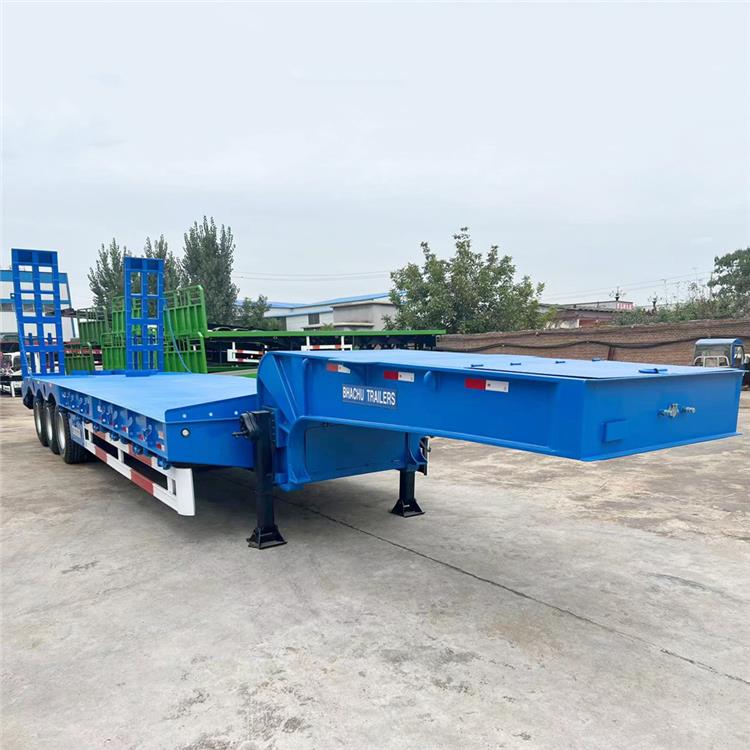

60 Ton Low Bed Trailer

60 Ton Low Bed Trailer Price: 14500USD

Low bed trailer price for hauling oversized machinery such as construction and industrial equipment. People are probably most familiar with seeing these low bed trailer prices move the outsized loads of bulldozers or excavators behind them.

The advantage of using the low bed trailer price is that large quantities of goods can be transported without additional permits. They can have axles added to increase weight capacity, and a drop-down feature allows taller equipment to be moved without height clearance.

Bhachu 60 Ton Low Bed Trailer Price - Bhachu Trailers for Sale

Bhachu 60 Ton Low Bed Trailer Price - Bhachu Trailers for Sale

Bhachu 60 Ton Low Bed Trailer Price - Bhachu Trailers for Sale

Bhachu 60 Ton Low Bed Trailer Price - Bhachu Trailers for Sale

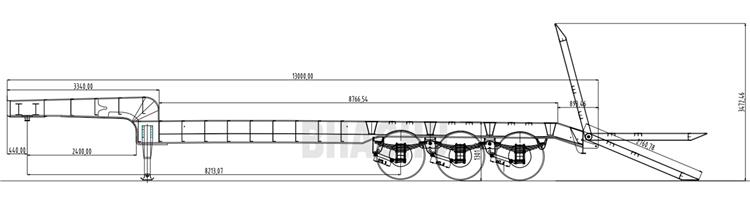

Specification of Lowbed Semi Trailer:

Overall dimension: 13000mm * 2500mm *3400mm

Loading capacity(T): 60T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam:

Height: 500mm, Upper plate: 22mm, Middle plate: 16mm, Lower plate: 22mm, Material: Q460C steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for oversea markets)

Advantage of Low Bed Trailer

1. Bhachu trailers for sale use the Q460C high strengthen steel to produce the low bed trailer price. The yield strength of Q460C steel is ≥620Mpa, more durable and stronger than ordinary steel, and its loading capacity is 5 times more than the trailer which adopt Q345 steel.

The thickness of the supports is 6mm and they are also made of Q460 C high-strength steel, whose loading capacity is twice more than other suppliers.

2. Bhachu trailers for sale uses more thick steel plate to produce the trailer. The middle plate is 550 mm in height, and 16 mm thick; the upper plate is 22 mm thick, 250 mm wide; the bottom plate is 22 mm thick,250 mm wide.

3. The side beam is made of T700 high-strength steel, the height is 300 mm and the width is 140 mm. The H-type design greatly improves the carrying capacity of the low bed trailer price.

4. Bhachu trailers for sale adopt high-density supports to enhance the trailer,the distance between every two supports is 50 cm. Bhachu trailers for sale also adopt a special design, the middle support and the oblique support a pair of should, improving the carrying capacity of the lowbed semi trailer.
